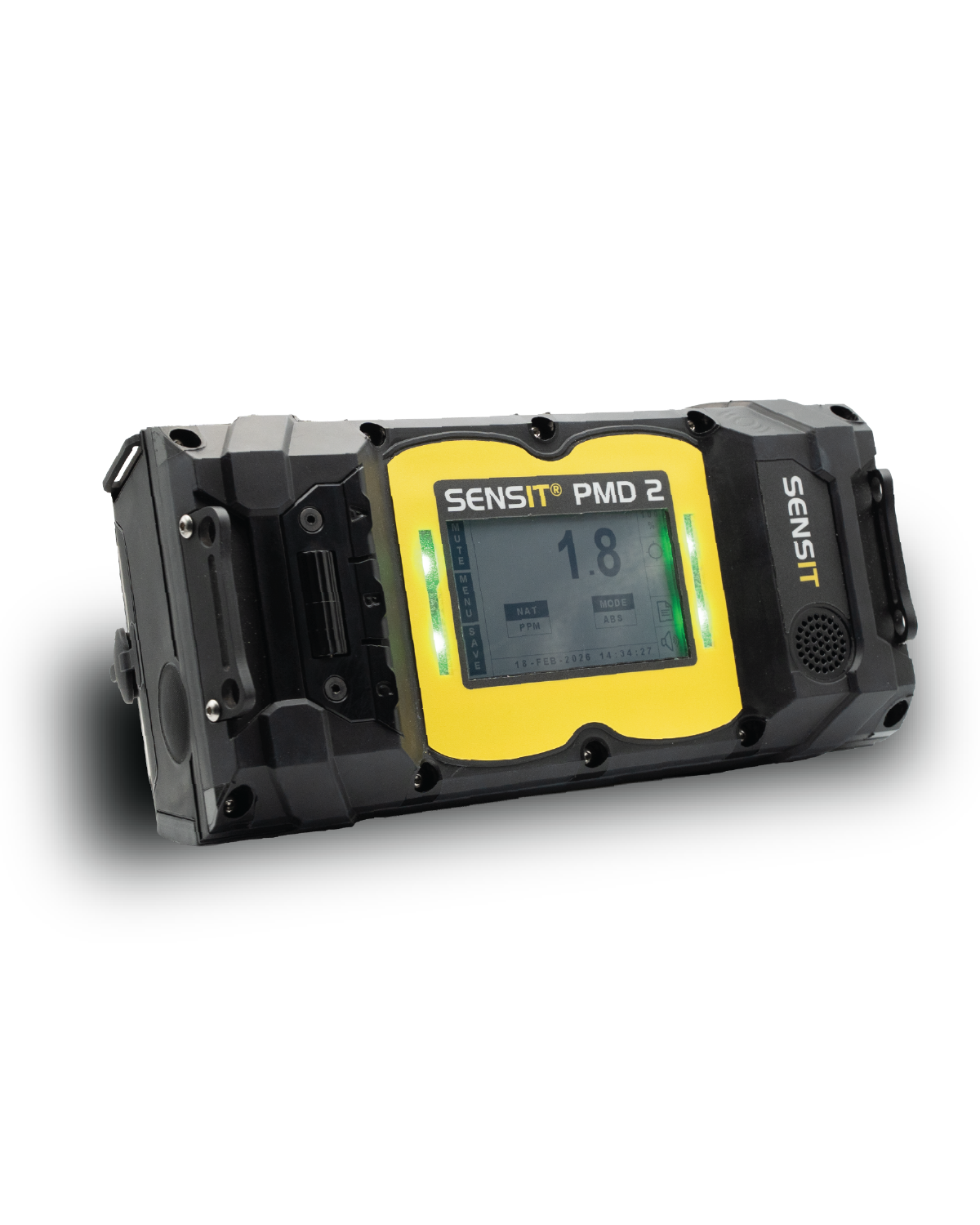

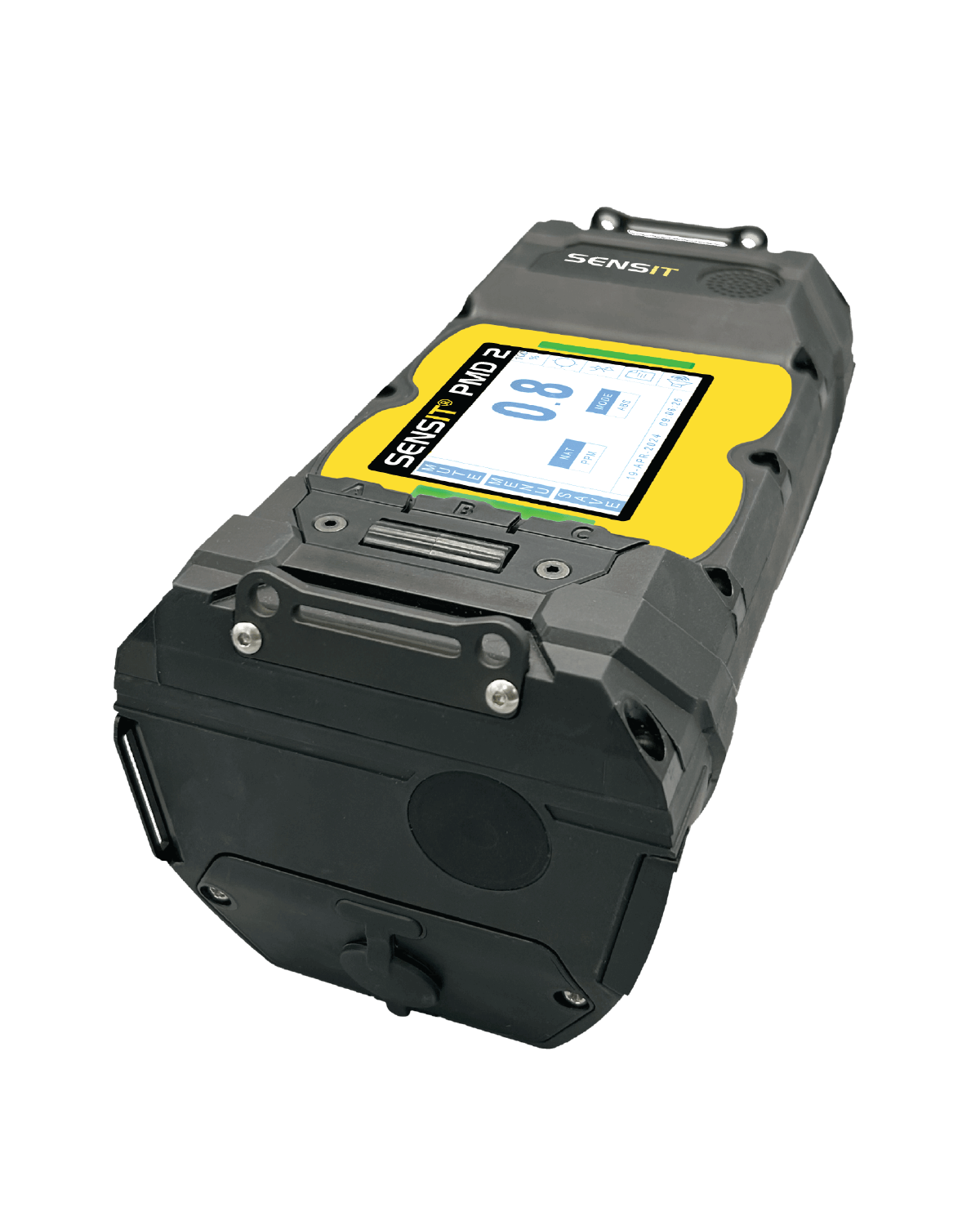

Sensit PMD 2 Natural Gas Leak Survey Detector

The SENSIT PMD 2 is an advanced methane detection and leak survey solution engineered for natural gas infrastructure inspections, leak investigations, and emissions monitoring. Its TDLAS technology provides methane-specific detection, helping crews focus on genuine methane leaks while minimizing false readings caused by other gases or environmental contaminants.

Built for demanding field environments, the PMD 2 combines fast response times, integrated GPS, extensive data storage, Bluetooth connectivity, and configurable alarm settings. The instrument's lightweight construction and long-lasting rechargeable battery support all-day operation, increasing productivity for utility operators and environmental monitoring professionals.

Key Features

• Methane-selective TDLAS detection technology
• High sensitivity down to 0.5 ppm
• Rapid startup in less than one minute
• Built-in GPS for location-based leak mapping
• Large illuminated display for easy viewing
• Powerful internal sampling pump
• Adjustable PPM, %LEL, and %VOL alarm settings
• Leak pinpointing and bar hole testing modes
• Bluetooth connectivity and data-stream output
• Extensive onboard data logging with event capture
• Lightweight and ergonomic design for prolonged field use
• Rechargeable, field-replaceable lithium-ion battery
• Audible and visual alarm indicators
• Rugged overmolded housing for durability in challenging environments [sensit-tech.com]

Benefits

• Eliminate False Positives
  TDLAS technology is specifically tuned to methane, helping operators avoid unnecessary investigations caused by vehicle exhaust, sewer gas, or other hydrocarbons.
• Improve Survey Efficiency
  Fast response times, GPS tracking, and automatic data collection enable technicians to cover more territory while maintaining accurate records of leak locations and readings.
• Enhance Regulatory Compliance
  Detailed data logging and export capabilities support documentation requirements, survey reporting, and emissions monitoring programs.
• Support All-Day Field Operations
  The compact design, lightweight construction, and extended battery life help reduce operator fatigue during lengthy inspections.
• Increase Operational Visibility
  Integrated Bluetooth and compatibility with software platforms simplify data transfer, reporting, and GIS-based analysis.

Frequently Asked Questions

What gas does the PMD 2 detect?

The PMD 2 is designed specifically for detecting methane(CH₄), providing highly selective measurements with minimal risk ofinterference from other gases.

What makes TDLAS technology advantageous?

TDLAS technology measures methane using laser absorption,enabling precise methane-specific detection with virtually no cross-sensitivityto other hydrocarbons. This helps reduce false alarms and improve fieldproductivity.

How long will the battery operate?

The rechargeable lithium-ion battery supports up to 12 hoursof continuous use under normal operating conditions.

Can survey data be exported?

Yes. The instrument stores extensive survey data andsupports wireless transfer via Bluetooth for reporting, mapping, and analysis.

Does the PMD 2 include GPS?

Yes. Built-in GPS captures location data for leak surveysand mapping applications.

Is calibration required?

Routine calibration is recommended to maintain accuracy.Automated and manual calibration options are available.

What accessories are available?

Probe options include telescopic survey probes, bar holeprobes, flexible probes, bore probes, bell probes, and additional accessoriesdesigned for specialized leak detection applications.
