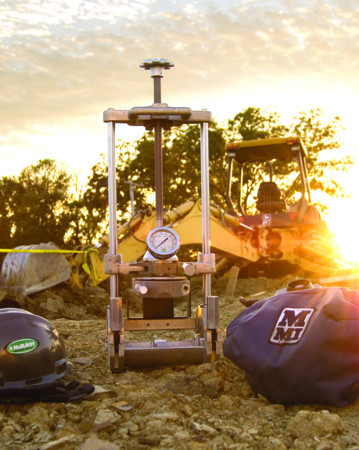

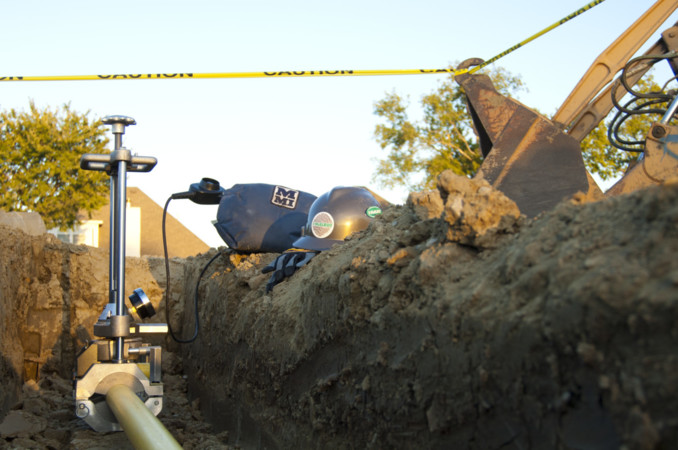

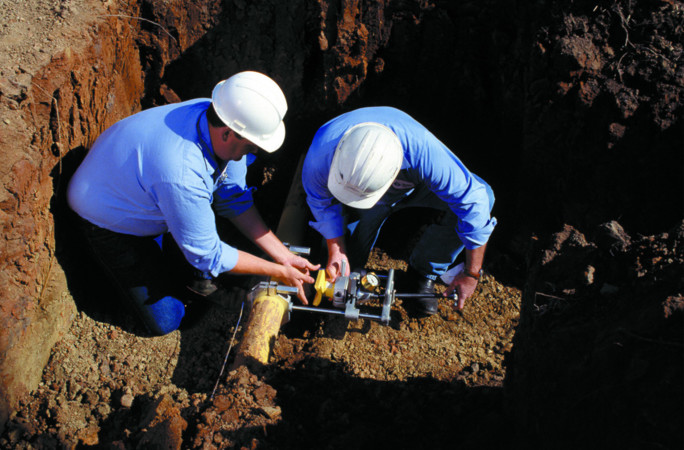

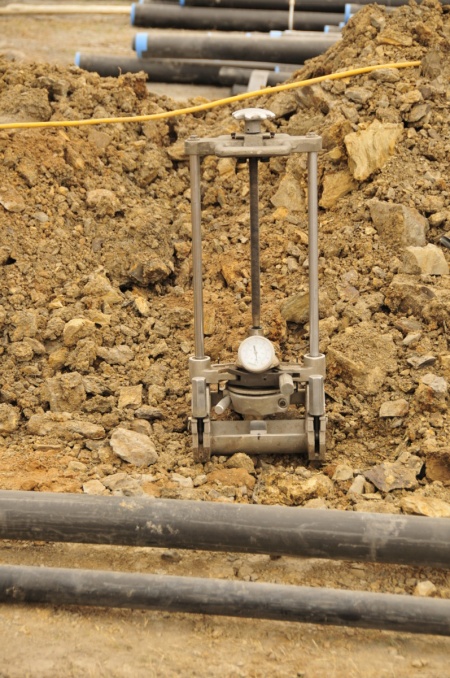

McElroy Sidewinder Chain Clamp Saddle Fusion Machine

The McElroy Sidewinder® is engineered to simplify saddle fusion operations for gas, water, and industrial polyethylene piping systems. Designed to fuse branch saddles, tapping tees, and service fittings onto main lines, the machine supports fittings up to 4-inch IPS and can be adapted for larger mains when equipped with a chain extension kit on chain clamp models.

Available in standard and compact models with either chain clamp or jaw clamp configurations, the Sidewinder® gives contractors flexibility for field installations while maintaining precise fusion control. DataLogger® compatibility allows users to document fusion procedures for quality assurance and recordkeeping needs.

Key Features

• Saddle fuses branch saddles, tapping tees, and service fittings up to 4" IPS.
• Compatible with main pipe sizes starting at 1¼" IPS.
• Available in both chain clamp and jaw clamp configurations.
• Compact model options available for space-restricted work environments.
• Chain extension kits available for larger main pipe diameters.
• Multiple pressure gauge options available (300, 600, 1,000, and 1,500 PSI).
• DataLogger® compatible for fusion data recording and quality documentation.
• Lightweight design for easy transport and jobsite handling.

Benefits

• Increased Installation Efficiency
  Quickly creates branch connections without requiring extensive pipe modifications, helping crews complete service tie-ins more efficiently.
• Improved Fusion Quality
  Precise pressure monitoring and controlled fusion procedures help deliver consistent, repeatable welds.
• Easier Jobsite Mobility
  Lightweight construction enables technicians to transport and position the machine with minimal effort.
• Flexible Jobsite Adaptability
  Multiple clamping configurations allow users to select the setup best suited to access restrictions and pipe conditions.
• Enhanced Quality Assurance
  DataLogger® compatibility supports fusion traceability and documentation for utility owners, engineers, and inspectors.

Frequently Asked Questions

What type of fittings can the Sidewinder® fuse?

The machine is designed to saddle fuse branch saddles, tapping tees, and service saddle fittings onto polyethylene mains.

What pipe sizes can it accommodate?

The Sidewinder® supports branch fittings up to 4-inch IPS and installs them onto main lines beginning at 1¼-inch IPS.

Is the Sidewinder® available in different configurations?

Yes. It is offered in jaw clamp, chain clamp, compact jaw clamp, and compact chain clamp configurations.

Can fusion data be recorded?

Yes. The machine is compatible with McElroy's DataLogger® system for fusion documentation and quality control.

Are heaters included with the machine?

No. Heaters and heater adapters are sold separately and must be selected based on the application requirements.

Can the machine be used on larger main pipes?

Chain clamp versions can be expanded for larger main sizes through the use of an optional chain extension kit.
