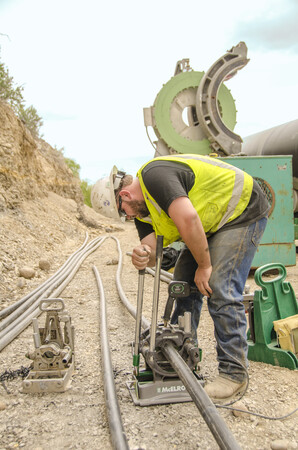

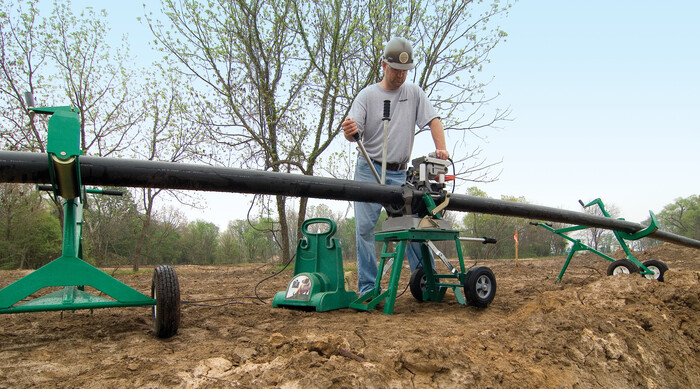

McElroy Pit Bull 14 Butt Fusion Machine

The McElroy Pit Bull® 14 is a compact, hand-operated butt fusion machine engineered for fusing small-diameter PE pipe in tight jobsite conditions. Built for underground and trench work, this unit combines portability with dependable performance, making it a go-to choice for contractors handling service lines, branch connections, and fitting installations.

Its patented centerline guidance technology ensures even force distribution during fusion, enabling uniform, repeatable joints. The machine’s semi-automatic locking system maintains proper pressure throughout the cooling cycle, reducing operator variability and improving weld consistency.

Constructed from durable materials with a small footprint, the Pit Bull 14 is ideal for crews that need mobility without sacrificing fusion quality.

Key Features

• Fusion range: 1" IPS to 4" DIPS (32mm – 110mm)
• Centerline Guidance System: Ensures balanced force across the joint
• Semi-automatic locking cam: Maintains fusion pressure during cooling
• Compact and lightweight design: Easy transport and setup in confined spaces
• Reversible jaws and components: Allows operation from either side of the machine
• High mechanical advantage (15:1): Reduces operator effort during fusion
• Thermostatically controlled heater: Maintains consistent fusion temperature
• Serrated jaws and inserts: Prevent pipe slippage during operation

Benefits

• Consistent weld quality: Precision alignment and pressure control reduce failed joints
• Improved jobsite productivity: Semi-automatic features minimize operator intervention
• Enhanced portability: Lightweight construction makes it easy to move trench-to-trench
• Versatile operation: Ideal for both pipe and fitting fusion in small-diameter systems
• Reduced operator fatigue: Mechanical advantage lowers manual effort requirements
• Reliable in tough environments: Designed for durability in underground construction conditions

Frequently Asked Questions

What pipe sizes can the Pit Bull 14 handle?

It supports pipe sizes from 1" IPS up to 4" DIPS (32mm to 110mm), making it ideal for small-diameter applications.

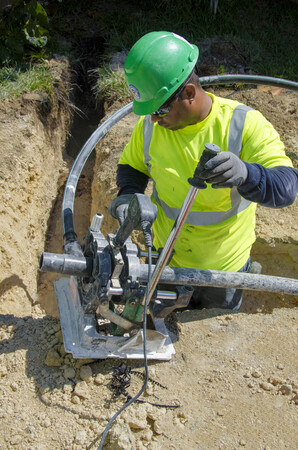

Is this machine suitable for trench work?

Yes. Its compact footprint and lightweight design make it especially effective for in-ditch and confined-space fusion.

Does it require hydraulic power?

No. The Pit Bull 14 is a manual, hand-operated fusion machine with mechanical advantage for ease of use.

What comes included with the machine?

Standard packages typically include the fusion machine, heater, facer, insulated stand, and insert set for common pipe sizes.

Can it fuse fittings as well as pipe?

Yes. It is designed to handle tees, elbows, and other fittings with consistent results.
