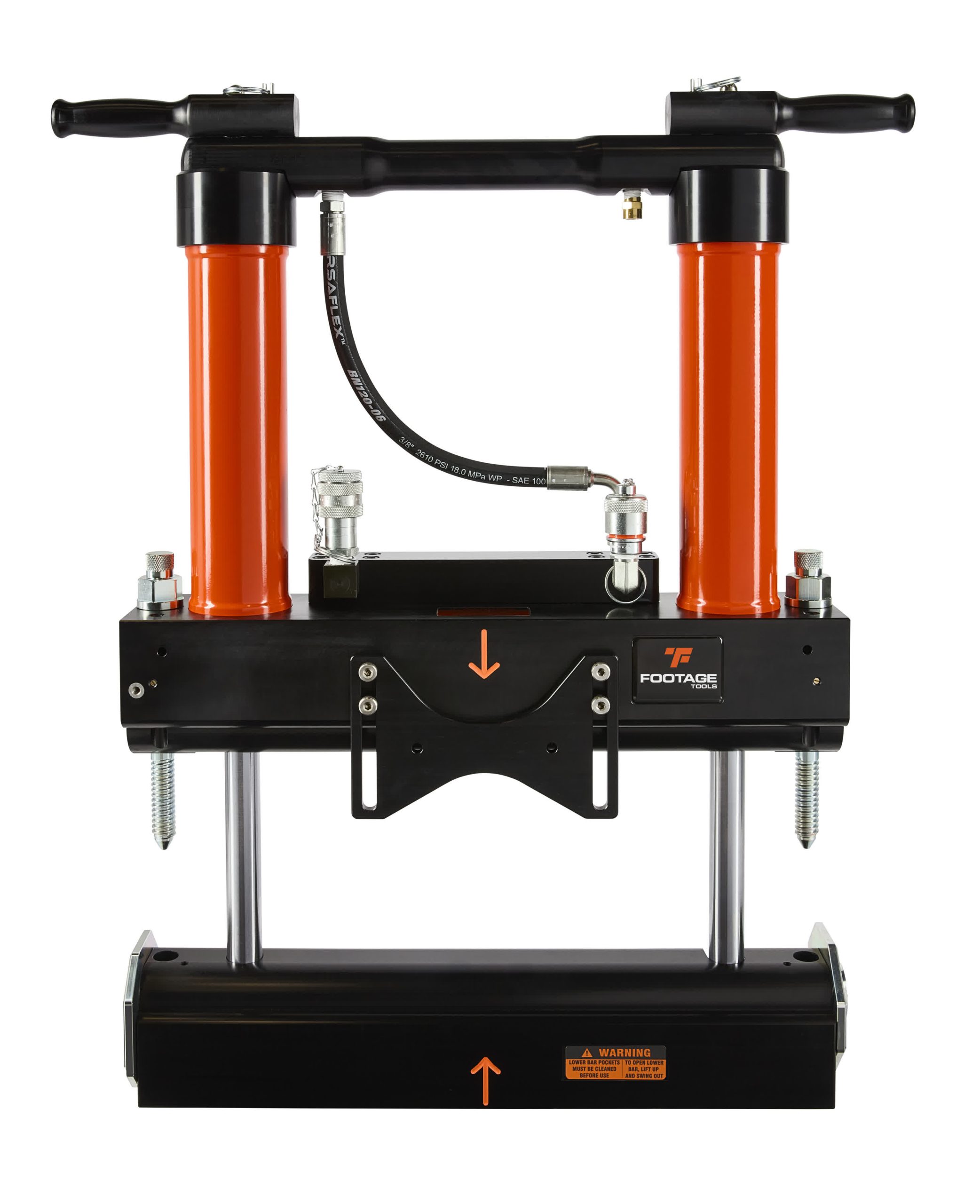

The Footage C850 Hydraulic Squeeze-Off Tool is engineered to provide safe, controlled pipe squeeze-off capabilities for medium and large diameter polyethylene pipe systems. Designed with productivity and operator safety in mind, the tool incorporates positive-locking gauge plates, a centering system for proper alignment, and a robust hydraulic design capable of handling demanding field conditions.
Its lock-in/swing-out bottom bar simplifies pipe loading, even in confined workspaces, while folding carrying handles reduce overall width for easier transport and storage. The integrated lock-down system helps maintain pipe compression if hydraulic pressure is removed during the operation.
Key Features
- Designed for 4" to 8" HDPE and MDPE pipe applications.

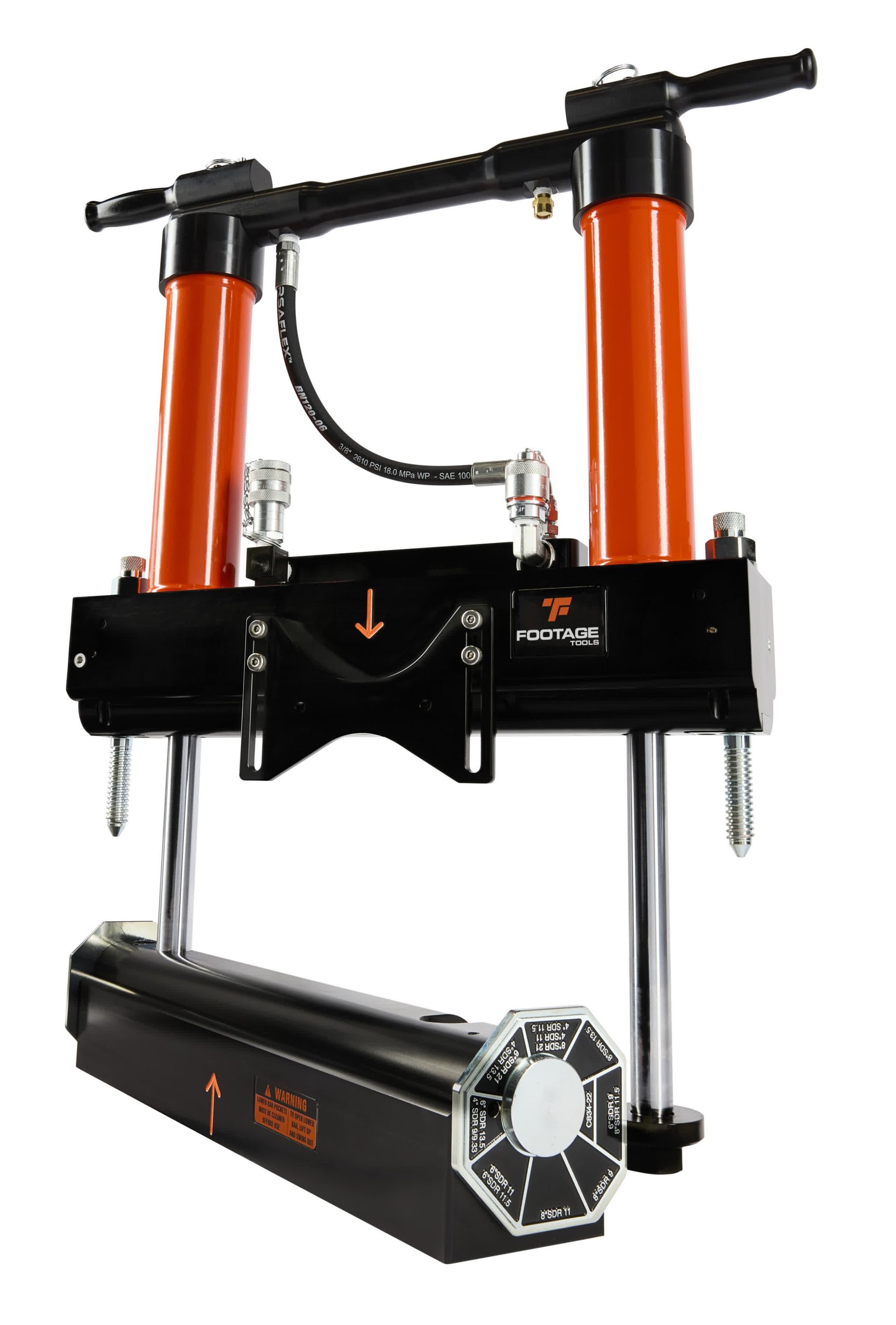

- 8-sided positive-locking indexable gauge plates for controlled squeeze operations.
- Centering plate system promotes proper pipe alignment.
- 10,000 PSI hydraulic system with quick-connect fittings for dependable field performance.
- Upward-facing hydraulic connectors improve accessibility when working in trenches or pits.
- Aircraft-grade aluminum squeeze bars provide strength while minimizing weight.
- Chrome-plated steel side shafts enhance durability and corrosion resistance.

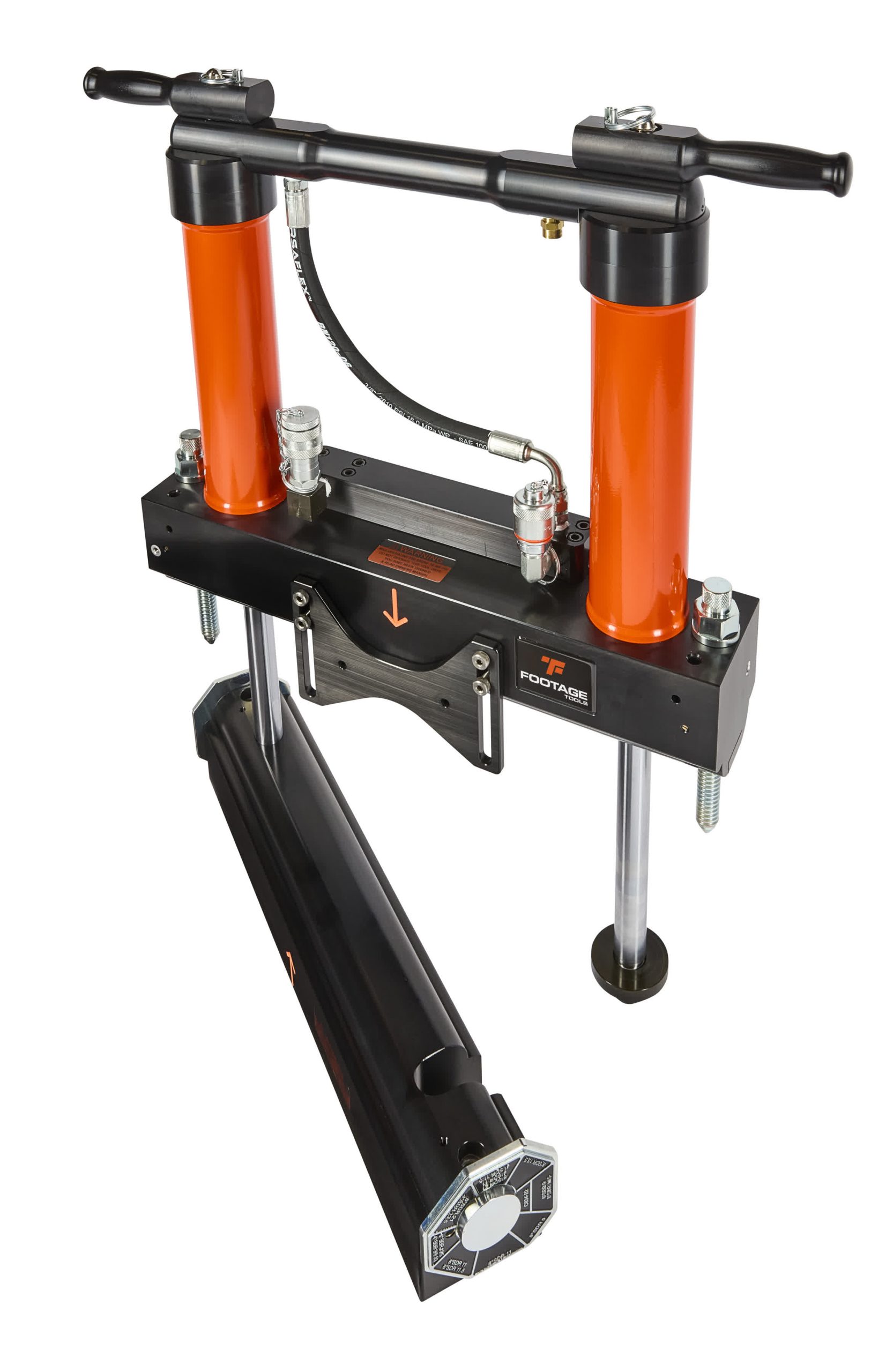

- Lock-in / swing-out bottom bar design allows faster pipe insertion and removal.
- Lock-down bolts help maintain compression if hydraulics are disconnected.
- Folding carrying handles reduce tool width for storage and confined-space operation.
- Includes a 10-foot heavy-duty grounding spike for enhanced operational safety.
- Custom gauge plates available for specialized applications.
Benefits
- Improve Jobsite Safety
Engineered to safely isolate flow in polyethylene pipe systems during maintenance and repair procedures. The included grounding spike and secure locking mechanisms support safer work practices. - Increase Field Productivity
The swing-out bottom bar and accessible hydraulic connections help crews load pipe quickly and operate efficiently, even in excavations and restricted work zones. - Reliable Compression Control
Positive-locking gauge plates and centering components help achieve consistent squeeze-off results across multiple pipe sizes and SDR ratings. - Built for Long-Term Use
High-strength aluminum components and chrome-plated steel shafts provide durability for utility contractors, gas distribution crews, and pipeline maintenance teams. - Easier Transport and Storage
Foldable handles reduce the tool footprint, making transportation and storage more convenient for field crews.
Frequently Asked Questions
What pipe sizes can the C850 handle?
The C850 is designed for polyethylene pipe sizes ranging from 4 inches to 8 inches.
What pipe materials is the tool designed for?
The tool is intended for MDPE and HDPE pipe systems.
What hydraulic pressure does the tool operate with?
The C850 utilizes a 10,000 PSI hydraulic system with quick-connect fittings.
Can the tool be used in confined work areas?
Yes. The inward-folding handles and swing-out bottom bar design help improve accessibility and operation in tight spaces.
What safety features are included?
The tool includes positive-locking gauge plates, lock-down bolts to maintain compression, and a heavy-duty grounding spike for additional operational safety.
Are custom configurations available?
Yes. Custom gauge plates are available for specialized application requirements.
