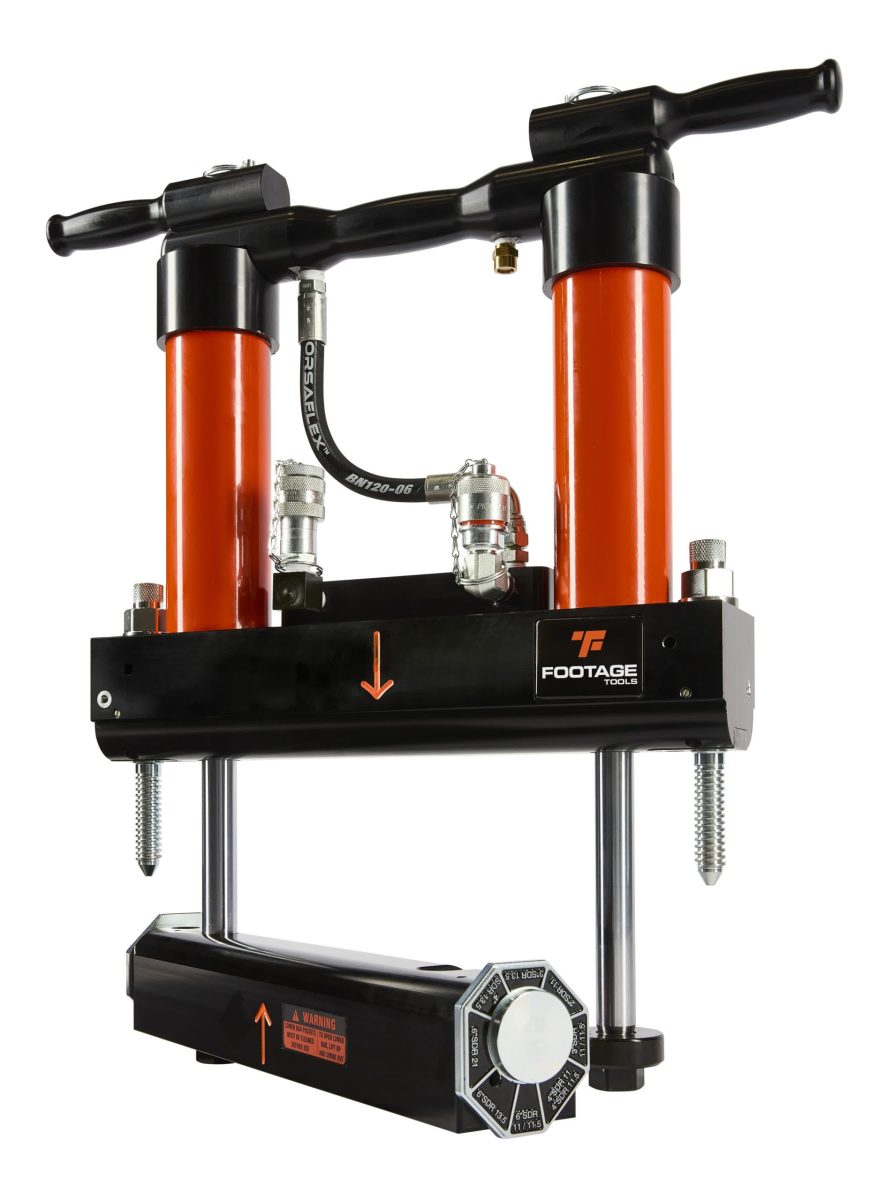

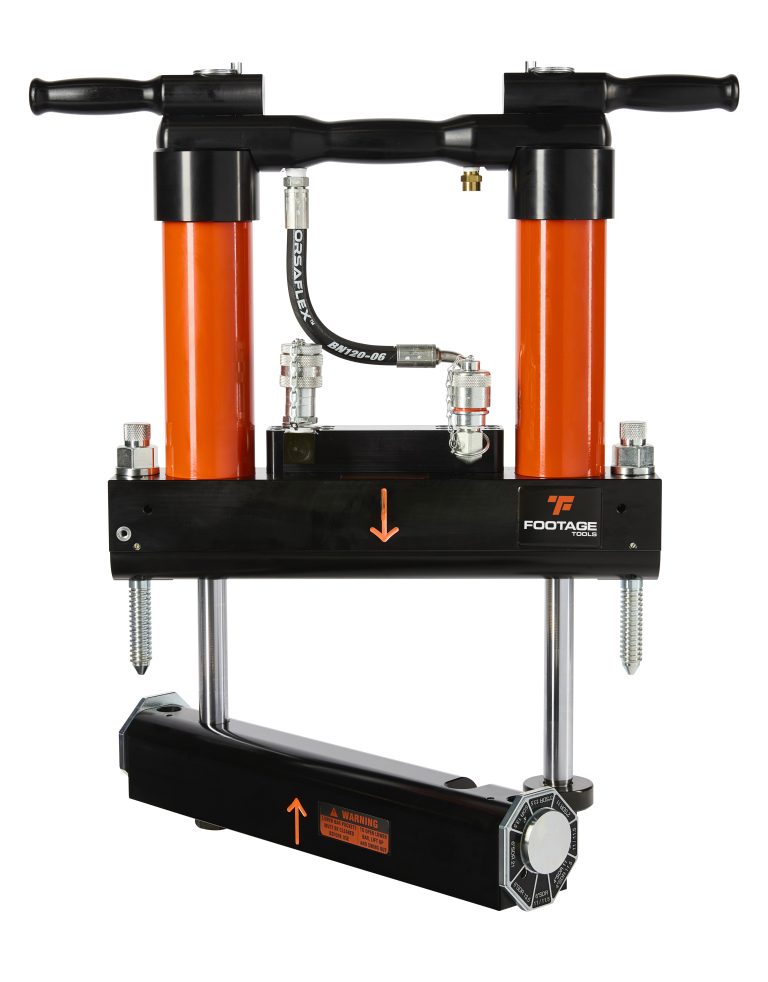

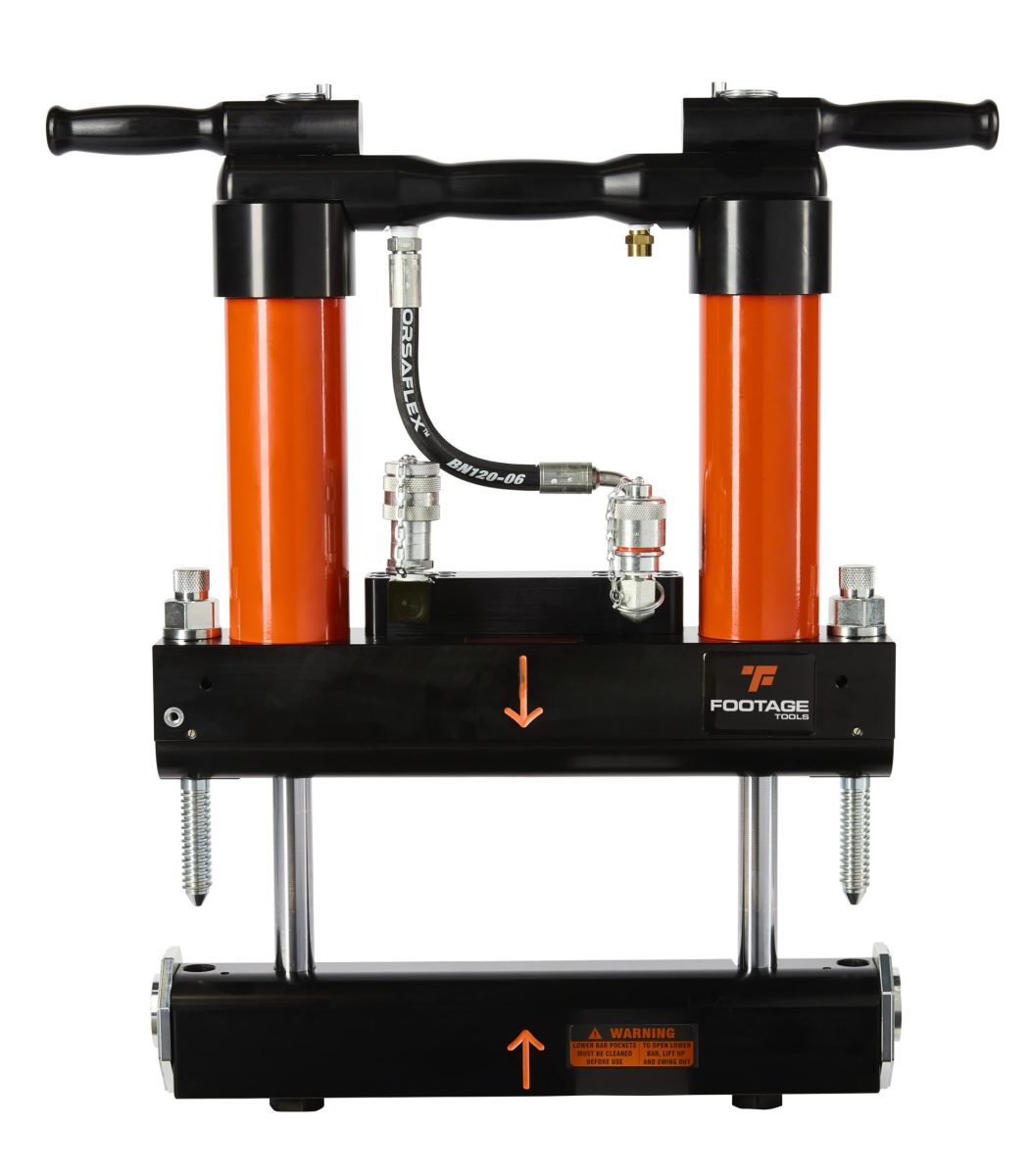

The Footage C600 Hydraulic Squeeze-Off Tool is engineered to provide a secure and controlled method for temporarily restricting flow in polyethylene piping systems. Built for field crews working in utility, gas, and infrastructure environments, the tool accommodates pipe sizes ranging from 2" to 6" and incorporates design features that improve safety, accessibility, and operational efficiency. [footagetools.com]
Its durable construction includes aircraft-grade aluminum squeeze bars, chrome-plated steel side shafts, and a high-pressure hydraulic system. Operator-focused features such as positive-locking gauge plates, a centering plate for proper pipe alignment, and upward-facing hydraulic connections help streamline use in trenches and confined work areas.
Key Features
- Designed for 2" to 6" MDPE and HDPE pipe applications.
- Positive-locking, indexable gauge plates help ensure proper squeeze settings.
- Centering plate assists with accurate pipe alignment during operation.
- Upward-facing hydraulic connectors improve access when working in pits or trenches.
- Movable carrying handles fold inward to reduce overall width for storage and confined-space access.
- Dual plunger pin locking system secures handles in either position.
- Aircraft-grade aluminum squeeze bars provide strength while reducing weight.
- Chrome-plated steel side shafts enhance durability and corrosion resistance.
- 10,000 PSI hydraulic system with quick-connect fittings for dependable operation.
- Lock-in / swing-out bottom bar design enables easier pipe access in tight workspaces.
- Lock-down bolts maintain the squeeze even if hydraulic pressure is disconnected.
- Includes a 10-foot heavy-duty grounding spike to support safe operation.
- Custom gauge plates available for specialized requirements.
Benefits
- Improved Field Efficiency
Quick-connect hydraulic fittings and accessible controls help crews complete squeeze-off tasks faster, reducing downtime and labor costs. - Enhanced Safety
Positive locking mechanisms, centering features, grounding equipment, and lock-down bolts help promote safe operation throughout the squeeze process. - Easier Use in Confined Spaces
The fold-in handles and swing-out bottom bar design improve maneuverability and pipe access when working in trenches, pits, or restricted jobsite areas. - Durable Construction
Built with high-strength aluminum and chrome-plated steel components to withstand demanding utility and construction environments. - Reliable Flow Control
Maintains secure pipe restriction throughout maintenance, repair, tie-in, and emergency response operations.
Frequently Asked Questions
What pipe materials is the C600 designed for?
The tool is designed for use with MDPE and HDPE pipe systems.
What size range can the C600 accommodate?
It is designed to squeeze pipe ranging from 2 inches to 6 inches in diameter.
Why are the hydraulic connections positioned upward?
The upward-facing connector design improves accessibility when the tool is being used in pits, trenches, or other below-grade work environments.
Can the tool maintain a squeeze if hydraulic pressure is removed?
Yes. Lock-down bolts help maintain the squeeze position even if the hydraulic system is disconnected.
Is the tool suitable for confined work areas?
Yes. Folding handles and the swing-out bottom bar design allow easier operation and access in restricted spaces.
Does the C600 include safety equipment?
Yes. The tool includes a 10-foot heavy-duty grounding spike to support safe squeeze-off procedures.
