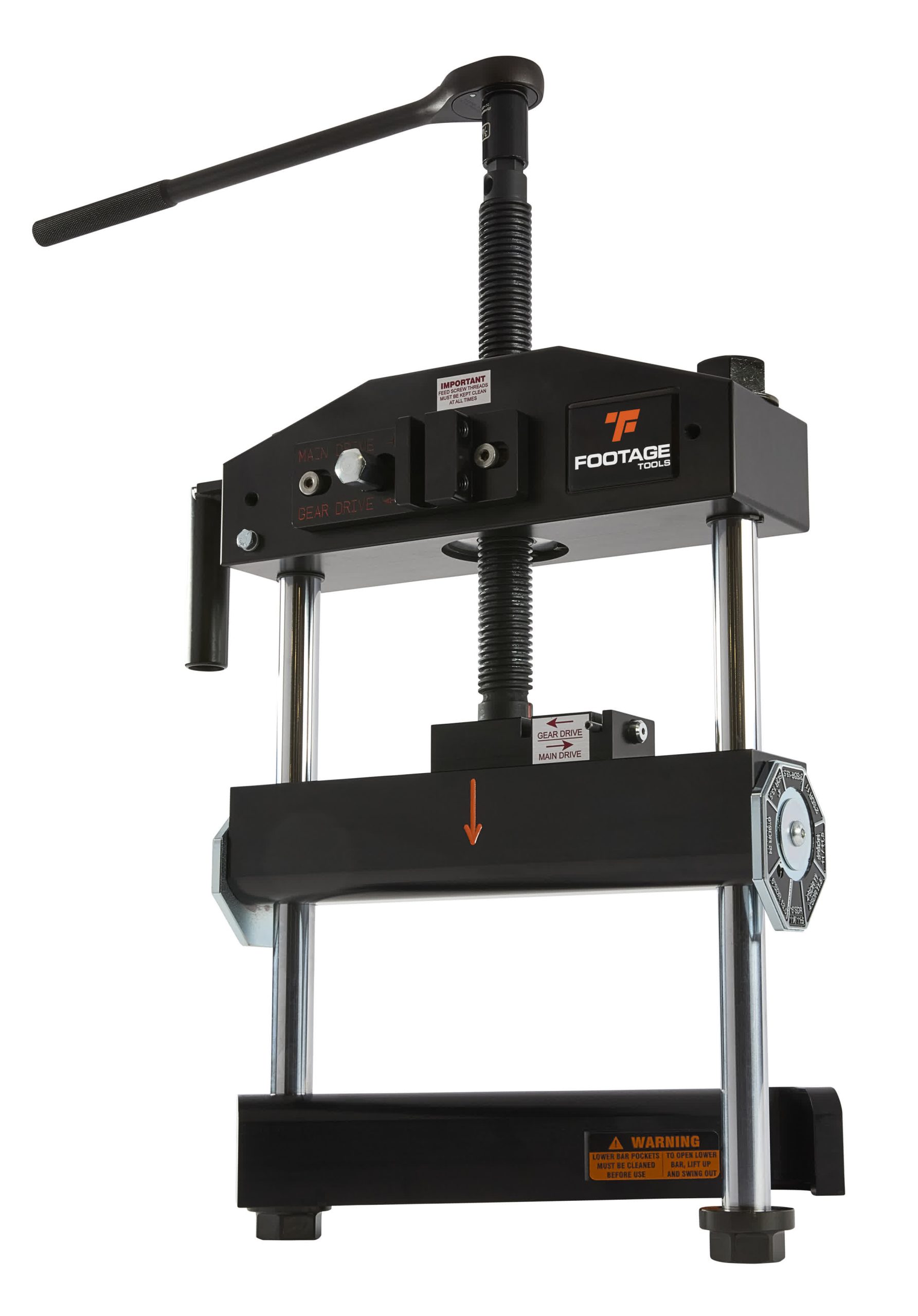

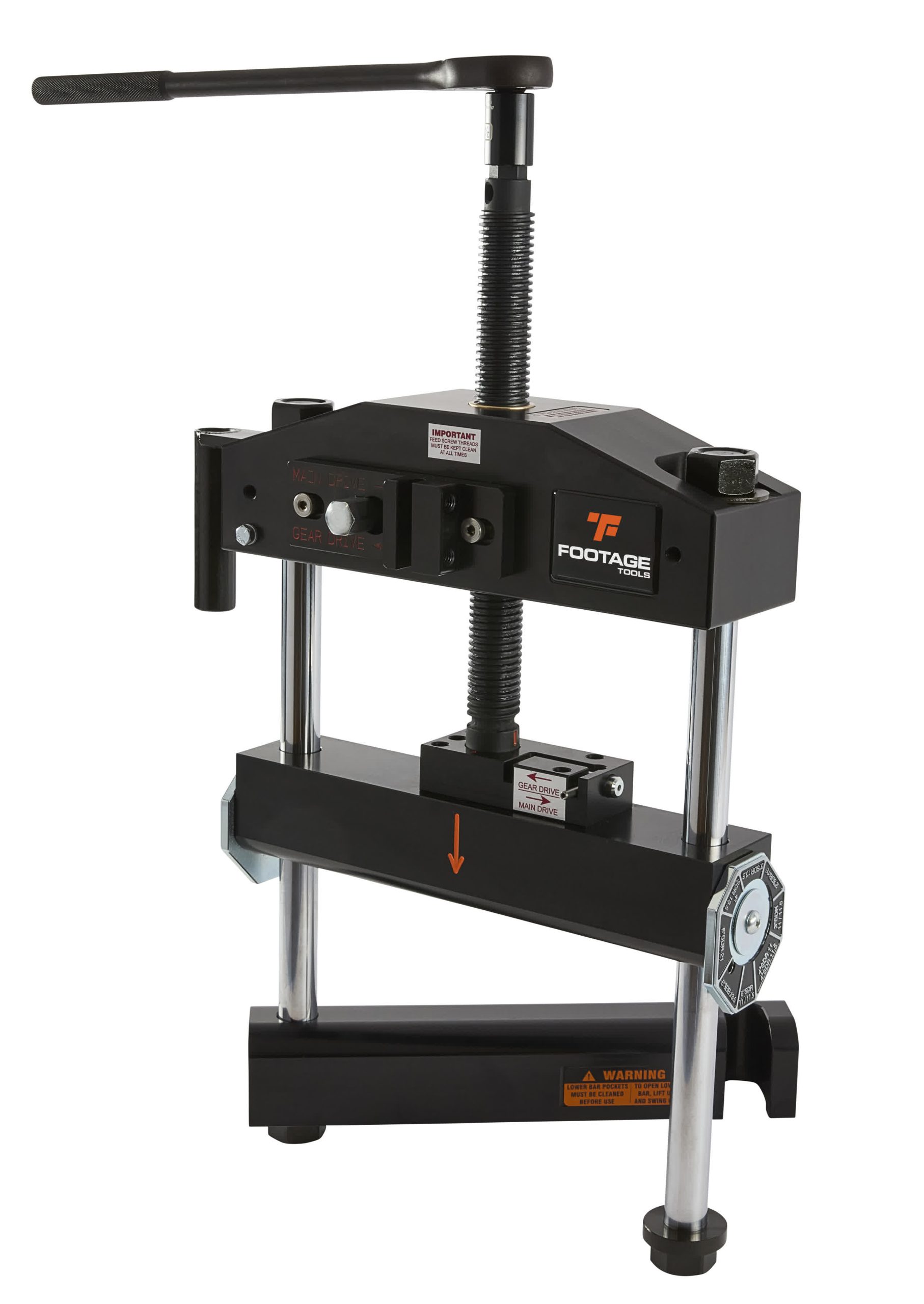

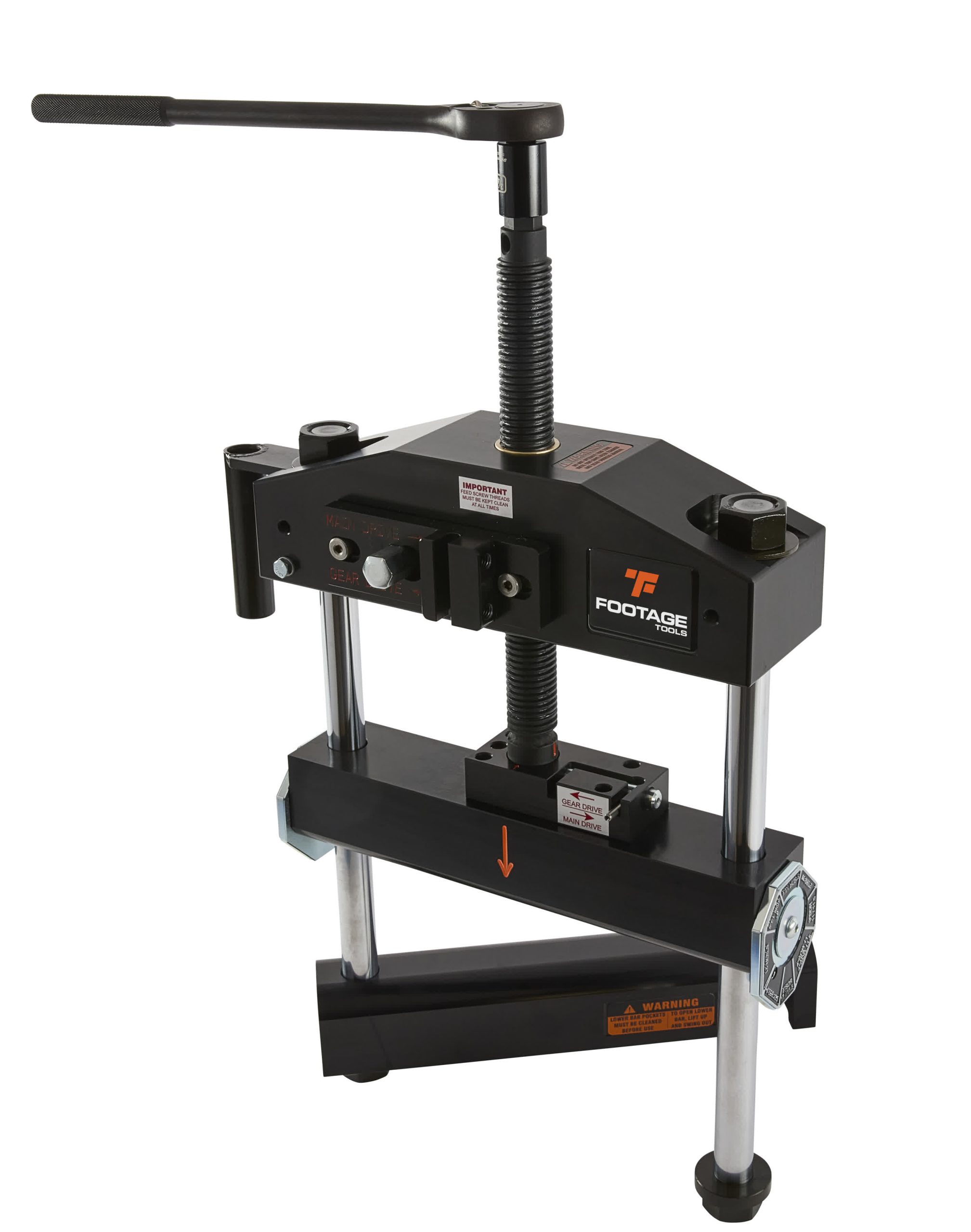

The Footage C400 Gear-Driven Squeeze-Off Tool is engineered for utility professionals who require dependable flow control on medium-diameter polyethylene piping systems. Designed as an economical alternative to hydraulic squeeze tools, this gear-driven unit delivers enhanced force and precision through a worm gear mechanism.
Its robust construction—including aircraft-grade aluminum squeeze bars and corrosion-resistant components—ensures long-term performance in demanding field environments. With a compact design and swing-out bottom bar, the C400 enables easy setup, even in tight or confined workspaces.
Key Features
- Worm Gear Drive Mechanism - Provides superior torque and controlled force for larger pipe diameters
- Wide Pipe Range Compatibility - Designed for squeezing 2" to 6" PE (MDPE/HDPE) pipe across multiple SDR ratings
- Indexable Gauge Plates - Six-sided, positive-locking plates ensure consistent and safe squeeze settings
- Heavy-Duty Construction - Aircraft-grade aluminum squeeze bars, chrome-plated steel side shafts, and coated feed screw to reduce corrosion and friction
- Ratchet-Driven Operation - Operates with a standard right-angle ratchet applied to integral hex drive

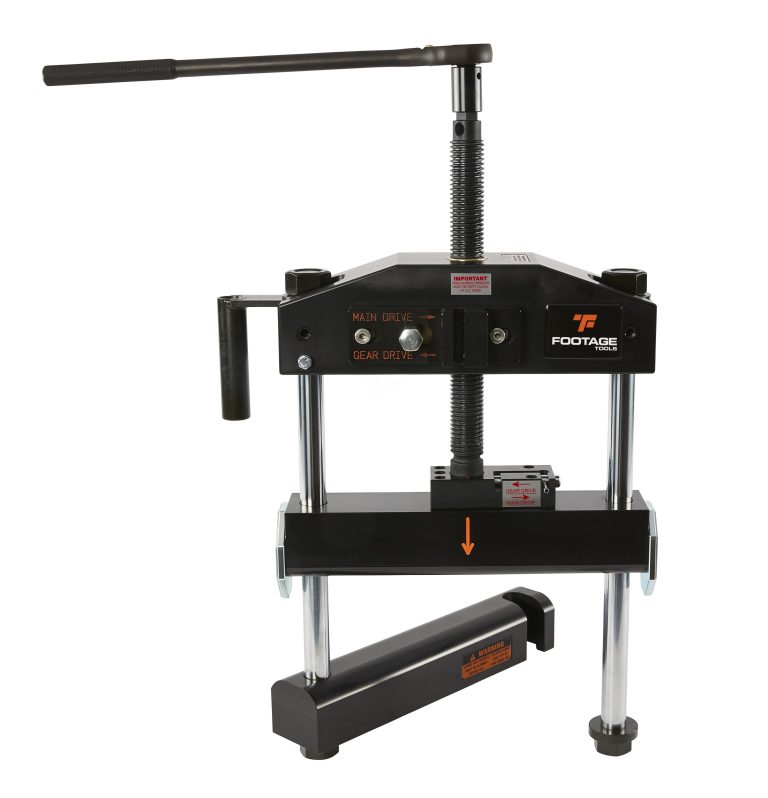

- Swing-Out Bottom Bar Design - Enables fast pipe placement and removal—ideal for restricted access areas
- Stabilization Bar - Improves tool balance and control during operation
- Safety Grounding Spike Included - Comes standard with a heavy-duty grounding spike for safer use during squeeze procedures
Benefits
- Lower Equipment Cost
Eliminates the need for hydraulics while still delivering strong squeeze performance - Improved Jobsite Efficiency
Quick setup and easy operation reduce labor time and improve workflow - Enhanced Operator Control
Gear-driven system allows gradual, controlled pressure application, minimizing pipe damage - Versatile Utility Application
Compatible with multiple pipe sizes and SDR ratings for flexible use across projects - Durable for Long-Term Use
Corrosion-resistant materials extend tool life in harsh field environments - Safe Operation
Built-in grounding solution and positive locking systems support safe squeezing practices
Frequently Asked Questions
What type of pipe is the C400 designed for?
It is specifically designed for polyethylene (MDPE/HDPE) pipe ranging from 2" to 6" diameters.
Does this tool require hydraulic power?
No. The C400 uses a manual worm gear drive, making it a cost-effective alternative to hydraulic tools.
How is the tool operated?
It is driven using a standard right-angle ratchet attached to the integrated hex drive.
Can it be used in tight spaces?
Yes. The swing-out bottom bar design allows for easier access and operation in confined areas.
Is safety equipment included?
Yes. A heavy-duty grounding spike is included to enhance operational safety.
Are custom configurations available?
Custom gauge plates can be ordered to meet specific pipe requirements.
