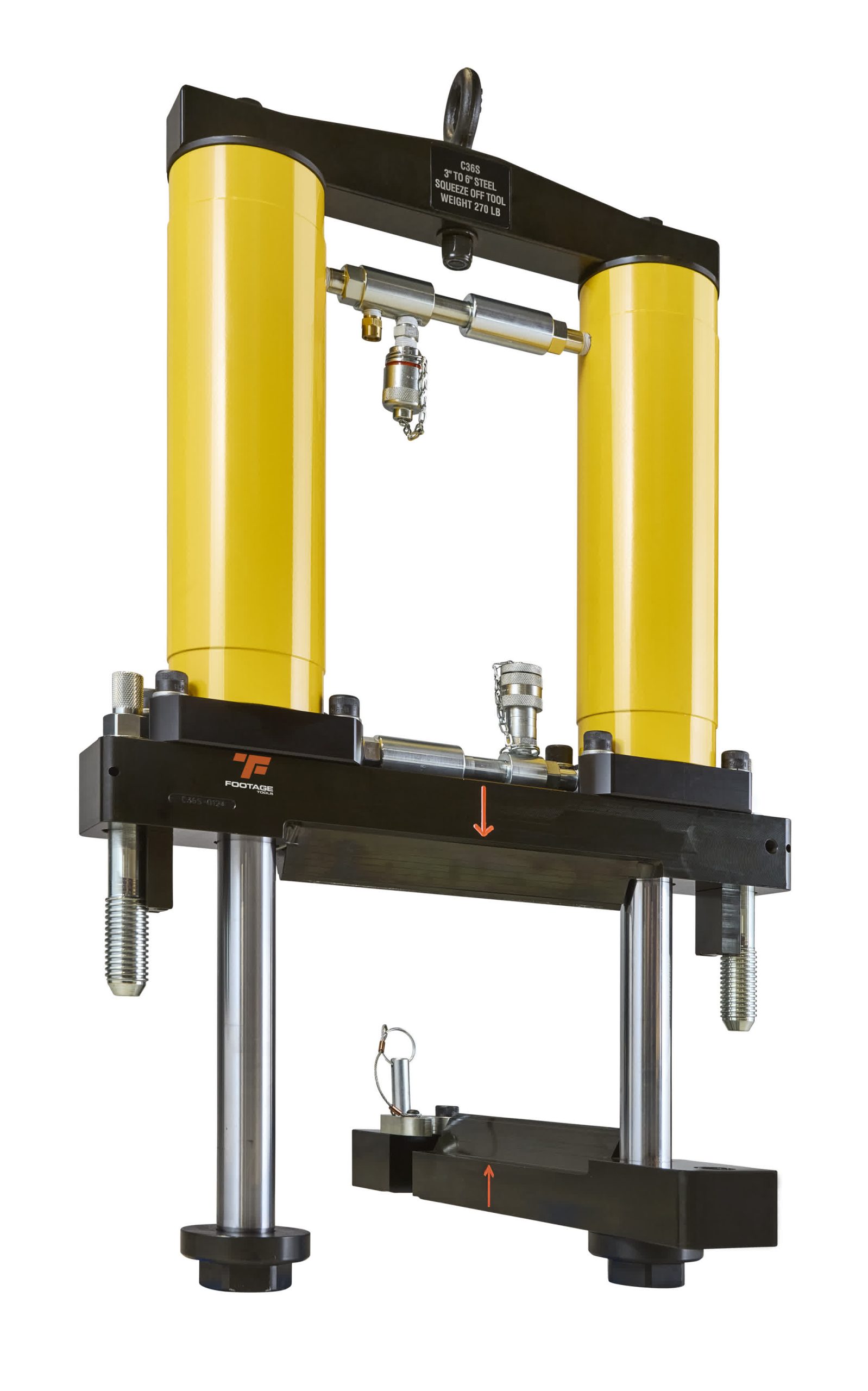

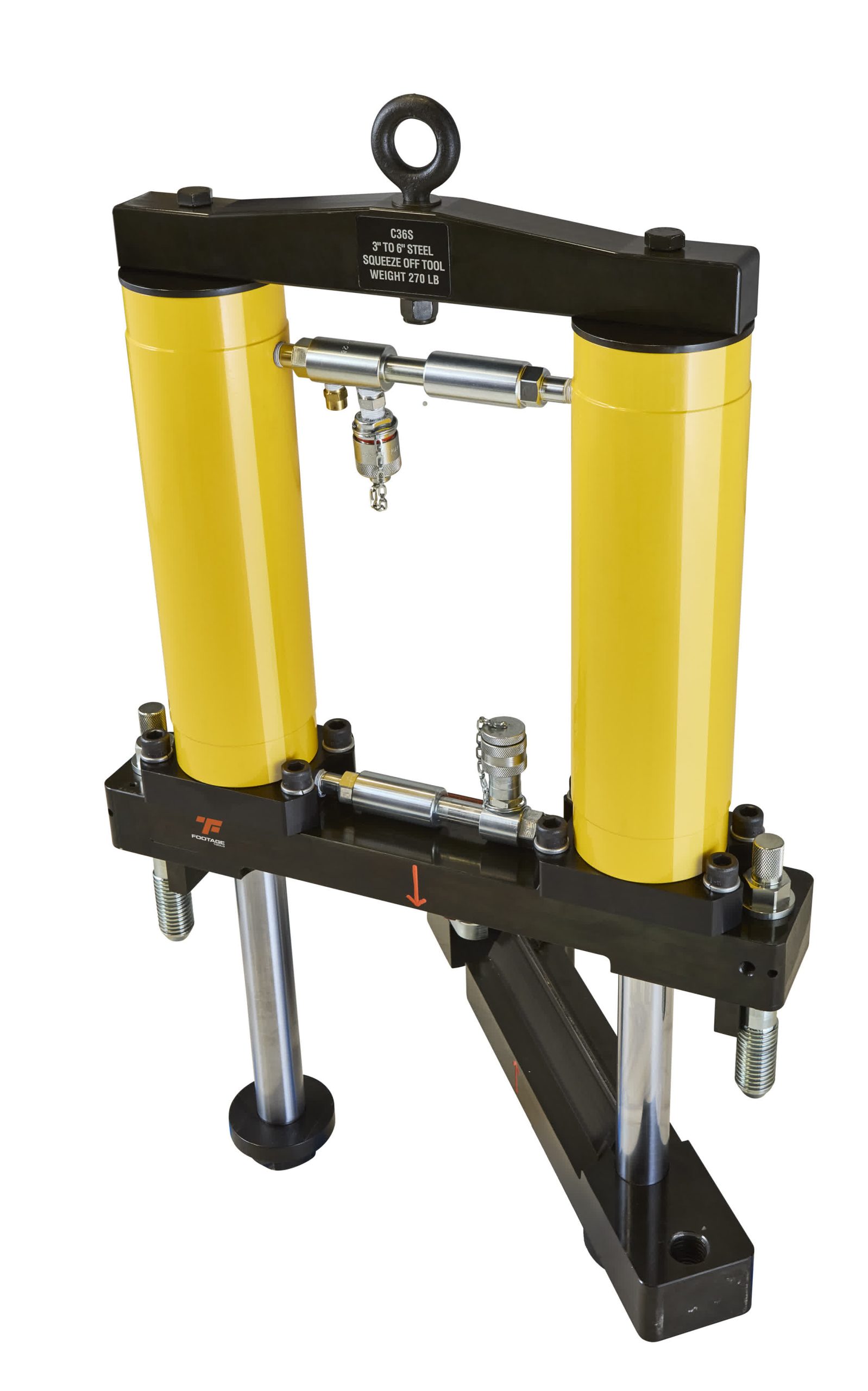

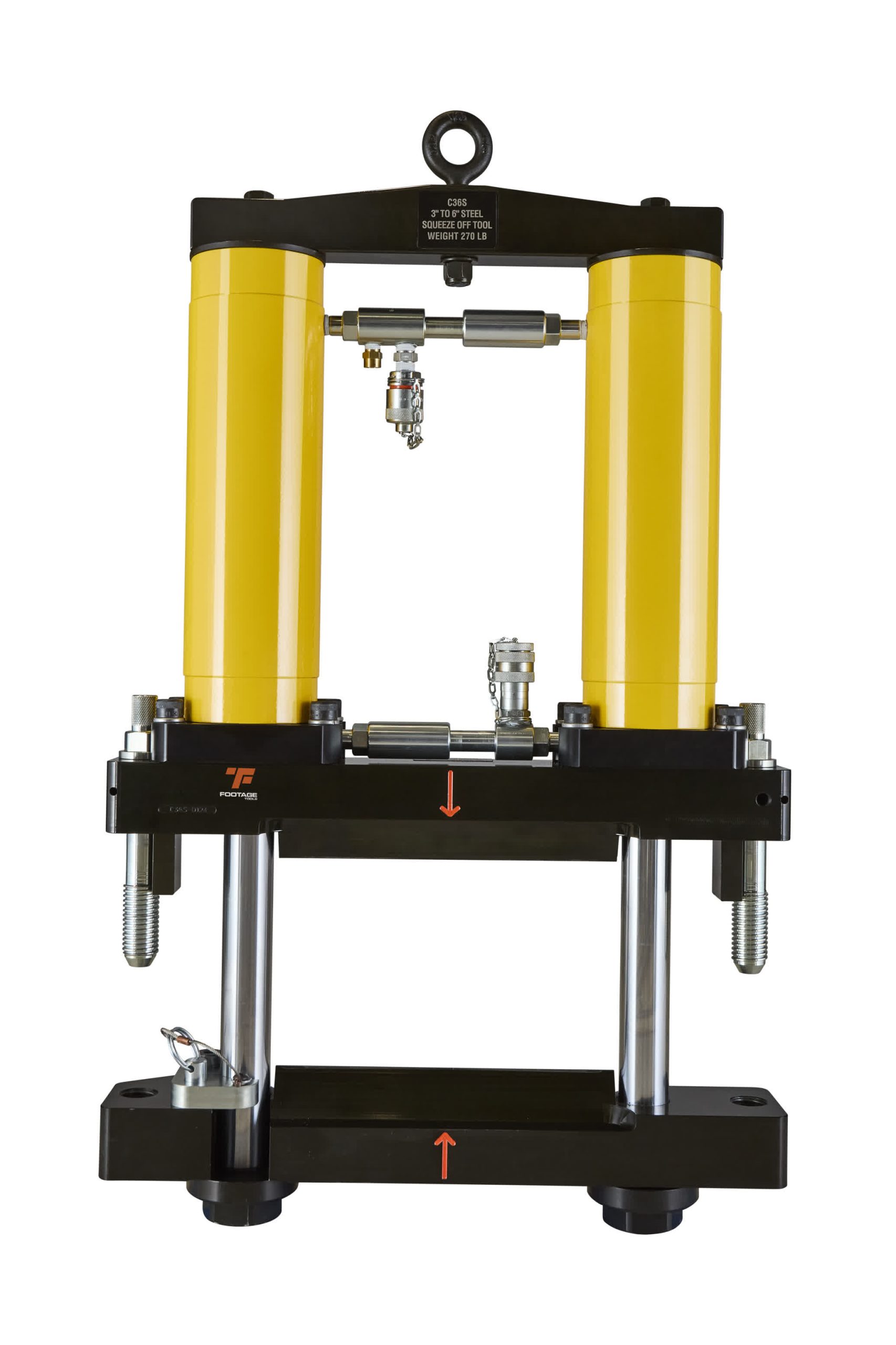

Footage C36S Steel Pipe Squeeze Tool

The Footage C36S Hydraulic Steel Squeeze-Off Tool is engineered for safe and effective pipeline isolation during emergency repairs, maintenance activities, and system shutdowns. Its compact profile and durable construction make it suitable for field deployment where reliability is critical.

The tool utilizes dual-acting hydraulic cylinders to generate controlled squeezing force, enabling operators to isolate sections of steel pipe quickly and efficiently. Integrated lock-down bolts help maintain squeeze integrity after hydraulic pressure is removed, while the jaw profile and safety block design help prevent pipe shearing or cutting during operation. The C36S can be powered by either a manual hydraulic hand pump or an air-over-hydraulic pump system, providing flexibility for a variety of jobsite conditions.

Key Features

• Designed for use on 3" to 6" steel pipe systems.
• Heavy-duty steel construction for demanding field environments.
• Dual-acting hydraulic cylinders for controlled operation and reliable performance.
• Bottom swing-out bar with positive locking mechanism.
• Safety blocks help prevent pipe cutting or shearing during squeeze-off procedures.
• Lock-down bolts maintain squeeze position after hydraulic disconnection.
• Compatible with manual hand pumps and air-over-hydraulic pump systems.
• Compact design enhances transportability and field accessibility.

Benefits

• Improves Emergency Response Efficiency
  Allows crews to rapidly isolate damaged or affected sections of pipeline, minimizing downtime and helping reduce operational disruptions.
• Enhances Jobsite Safety
  Built-in safety blocks and a non-shearing jaw profile help reduce the risk of pipe damage during squeeze-off operations.
• Maintains Reliable Isolation
  Lock-down bolts keep the pipe securely squeezed even when hydraulic pressure is removed, allowing crews to work with confidence.
• Flexible Power Options
  Operates with either manual or air-assisted hydraulic pumps, making it adaptable to varying field conditions and crew preferences.
• Built for Harsh Utility Environments
  Rugged construction withstands demanding utility, pipeline, and infrastructure maintenance applications.

Frequently Asked Questions

What pipe sizes can the C36S accommodate?

The tool is designed for steel pipe ranging from 3 inches to 6 inches in diameter.

What type of power source does the tool require?

The C36S can be operated using either a manual hydraulic hand pump or an air-over-hydraulic pump system.

Does the tool include safety features to protect the pipe?

Yes. Safety blocks and a specially designed jaw profile help prevent pipe shearing or cutting during squeeze-off operations.

Can the squeeze be maintained after disconnecting hydraulic pressure?

Yes. Integrated lock-down bolts secure the squeeze position and maintain pipe isolation after the hydraulic system is disconnected.

Who typically uses this tool?

The C36S is commonly used by utility contractors, pipeline maintenance crews, municipal gas departments, and emergency response teams responsible for steel pipeline systems.

Is the tool suitable for emergency response applications?

Yes. The C36S was specifically designed as a reliable heavy-duty solution for emergency pipeline isolation situations
