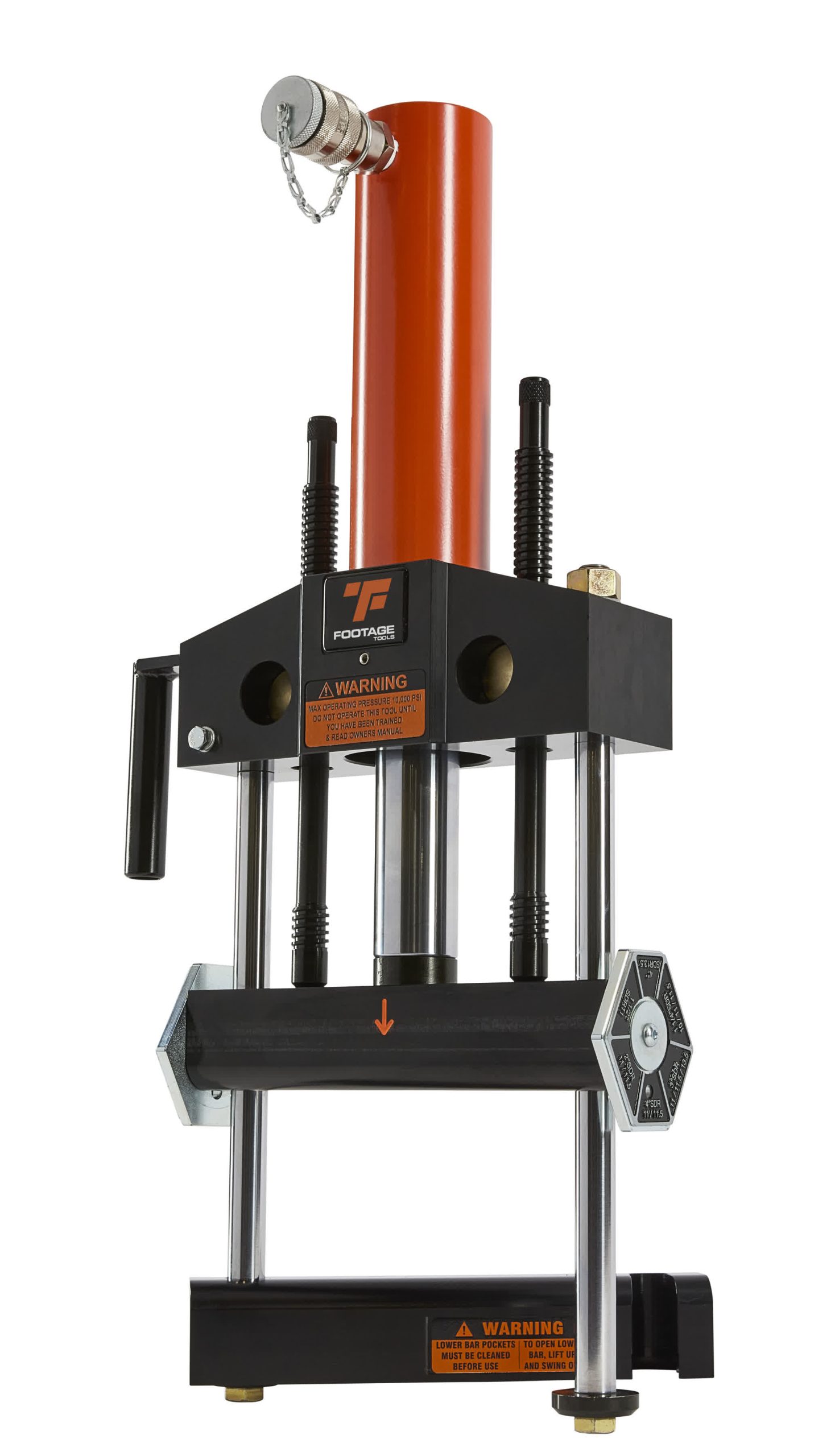

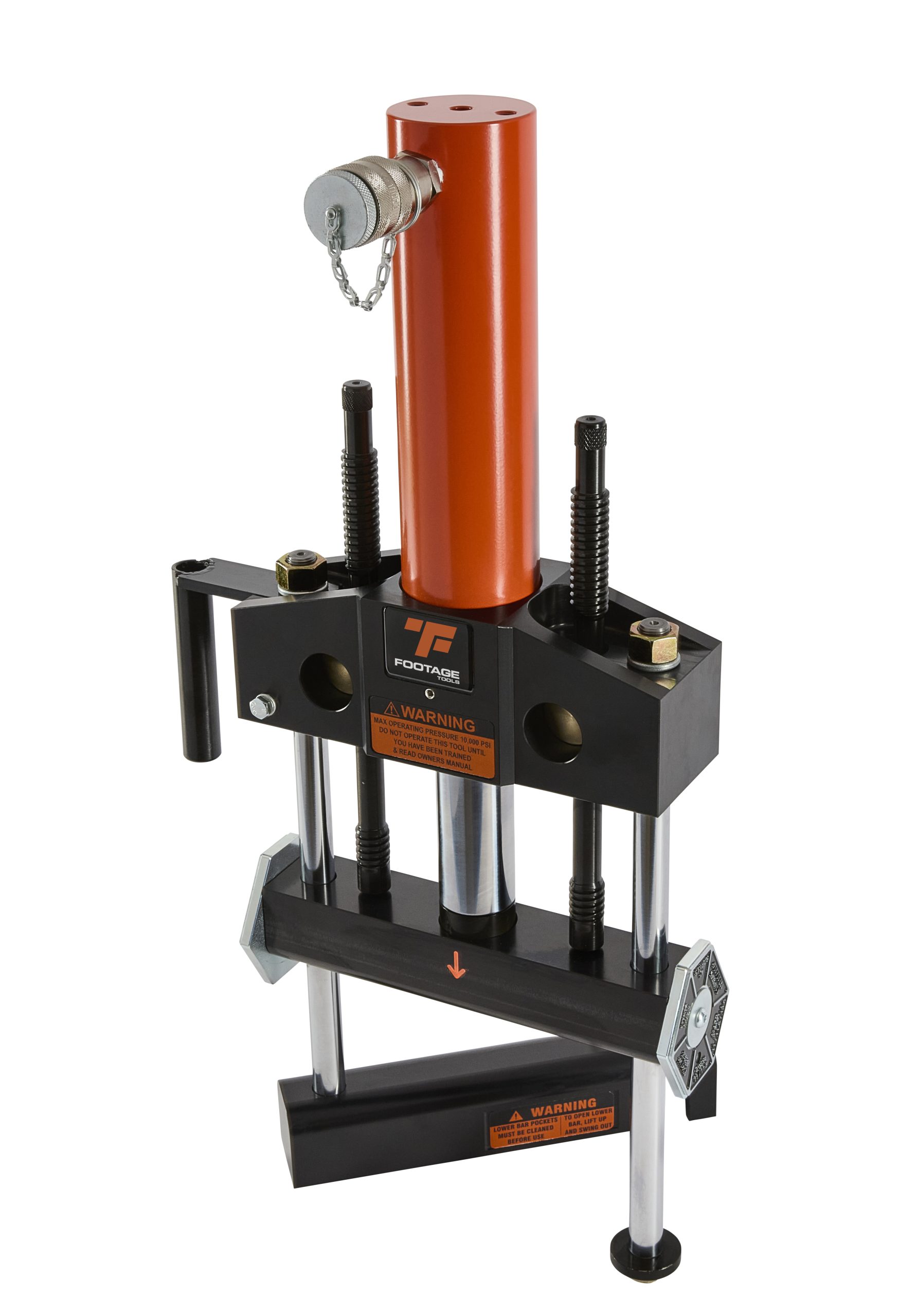

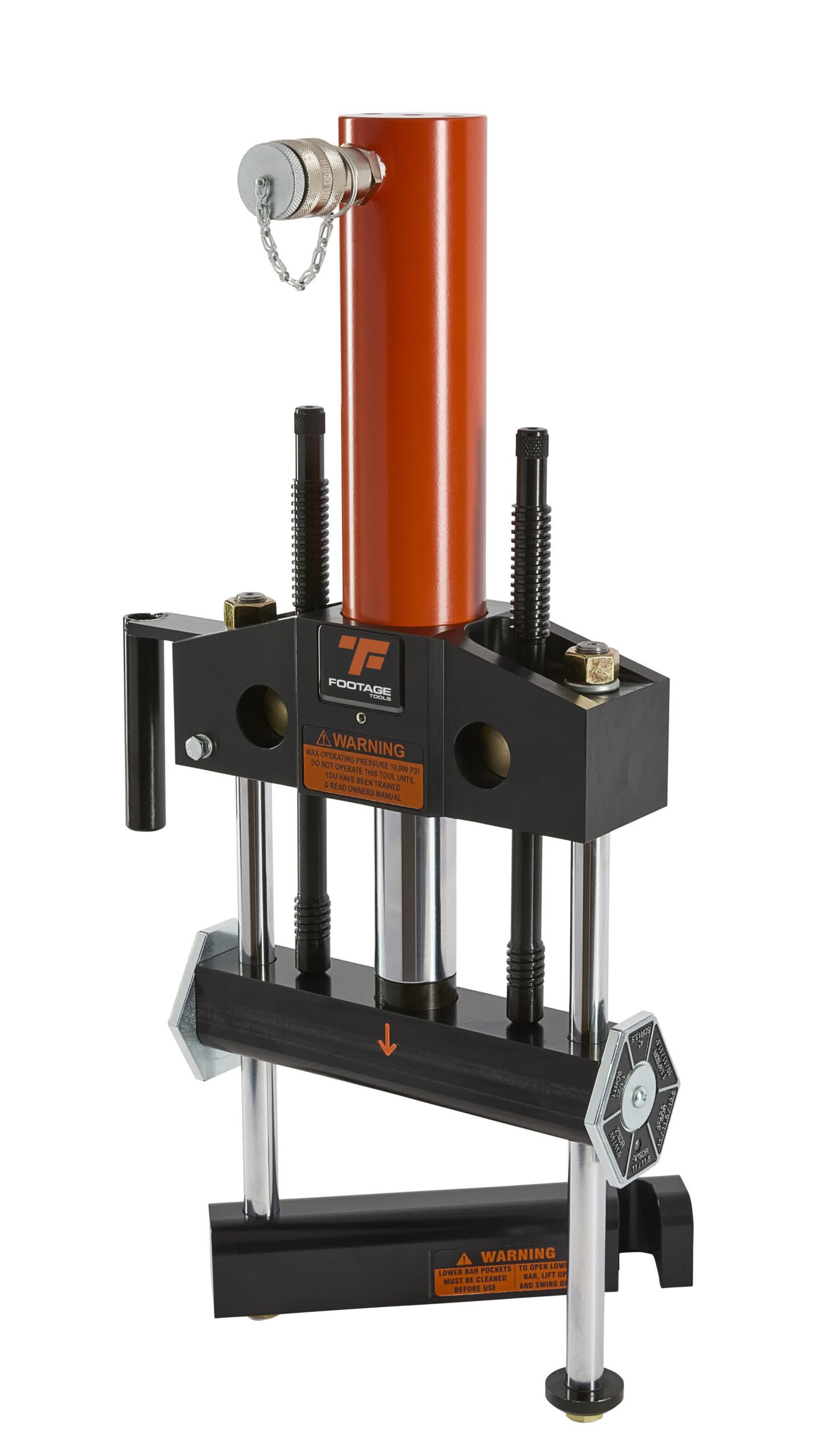

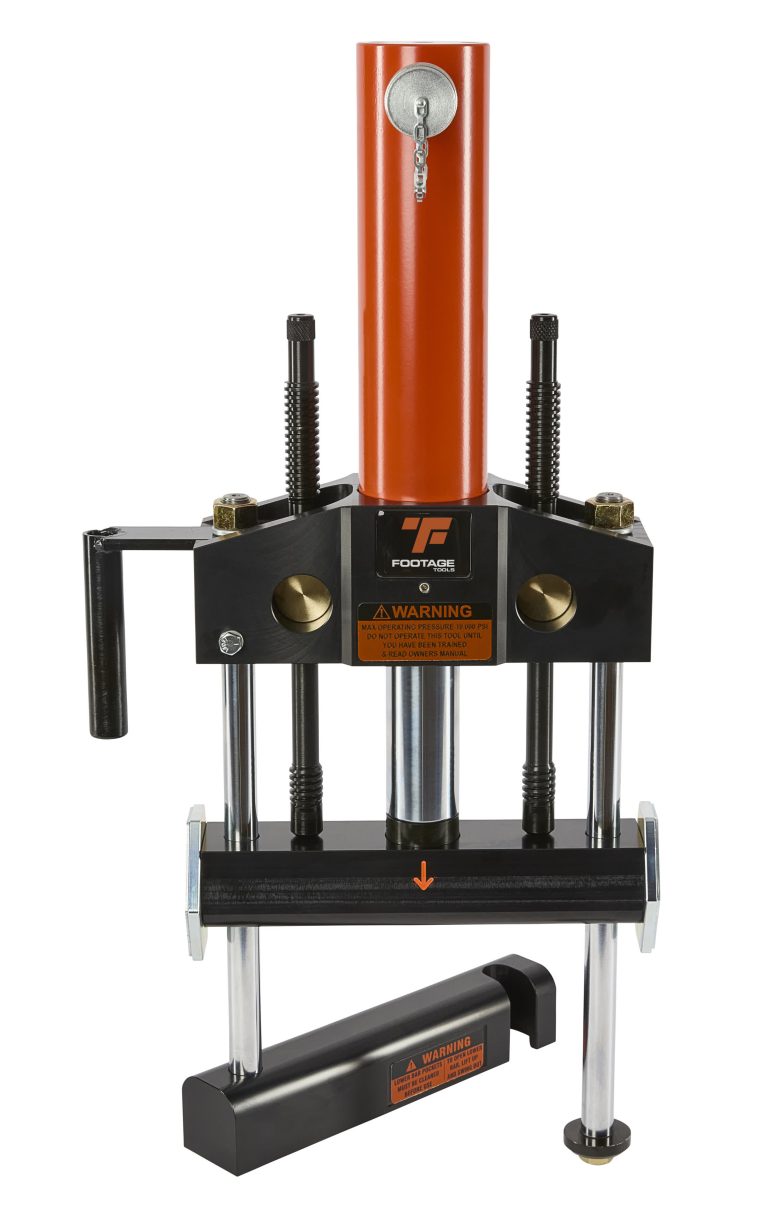

Footage C177 Hydraulic PE Pipe Squeeze Tool

The Footage C177 Hydraulic Squeeze-Off Tool provides a reliable solution for temporarily restricting flow in polyethylene piping during maintenance, repairs, system modifications, and emergency operations. Built with lightweight yet rugged aircraft-grade aluminum squeeze bars and a hydraulic actuation system, the tool helps crews achieve consistent pipe compression while maintaining operator safety and control.

Its innovative swing-out bottom bar design allows quick pipe placement and removal, making it especially useful in trenches, pits, and other confined workspaces. Positive locking gauge plates and lock-down bolts help maintain a secure squeeze even when hydraulic pressure is removed, enhancing productivity and jobsite confidence.

Key Features

• Designed for 1" to 4" MDPE and HDPE pipe applications.
• Hydraulic operating system for controlled, consistent pipe squeezing.
• Six-sided positive-locking indexable gauge plates for accurate pipe compression settings.
• Lightweight aircraft-grade aluminum squeeze bars for durability and easier handling.
• Easy-access hydraulic connector simplifies operation in pits and excavations.
• Unique lock-in / swing-out bottom bar design enables quick pipe access in confined spaces.
• Lock-down bolts maintain squeeze pressure even when hydraulics are disconnected.
• Includes a 10-foot heavy-duty grounding spike to support safe operation.
• Optional custom gauge plates available for specialized applications.

Benefits

• Improved Safety
  Designed specifically for polyethylene gas and utility piping applications, the C177 helps technicians safely isolate sections of pipe during maintenance and repair operations.
• Increased Jobsite Efficiency
  The swing-out lower bar and accessible hydraulic connection minimize setup time and simplify operation in restricted work areas.
• Reliable Squeeze Retention
  Lock-down bolts maintain compression without continuous hydraulic connection, reducing downtime and improving operational flexibility.
• Durable Yet Lightweight Construction
  Aircraft-grade aluminum components provide long service life while reducing handling fatigue for field crews.
• Versatile Utility Tool
  Suitable for a broad range of HDPE and MDPE pipe sizes commonly found in gas distribution, utility, and industrial piping systems.

Frequently Asked Questions

What pipe materials can the C177 be used on?

The tool is designed for use on MDPE and HDPE polyethylene pipe systems.

What pipe sizes does the tool support?

The C177 accommodates pipe sizes from 1 inch through 4 inches, depending on SDR requirements.

Does the tool maintain the squeeze if hydraulic pressure is removed?

Yes. The integrated lock-down bolt system is designed to maintain the squeeze even when the hydraulic connection is disconnected.

Is the tool suitable for confined workspaces?

Yes. The swing-out bottom bar design allows easier pipe access and handling in pits, trenches, and other restricted areas.

Are custom configurations available?

Yes. Custom gauge plates can be requested for specialized applications.

Does the tool include safety accessories?

The C177 comes with a 10-foot heavy-duty grounding spike to support safe squeeze-off operations.
