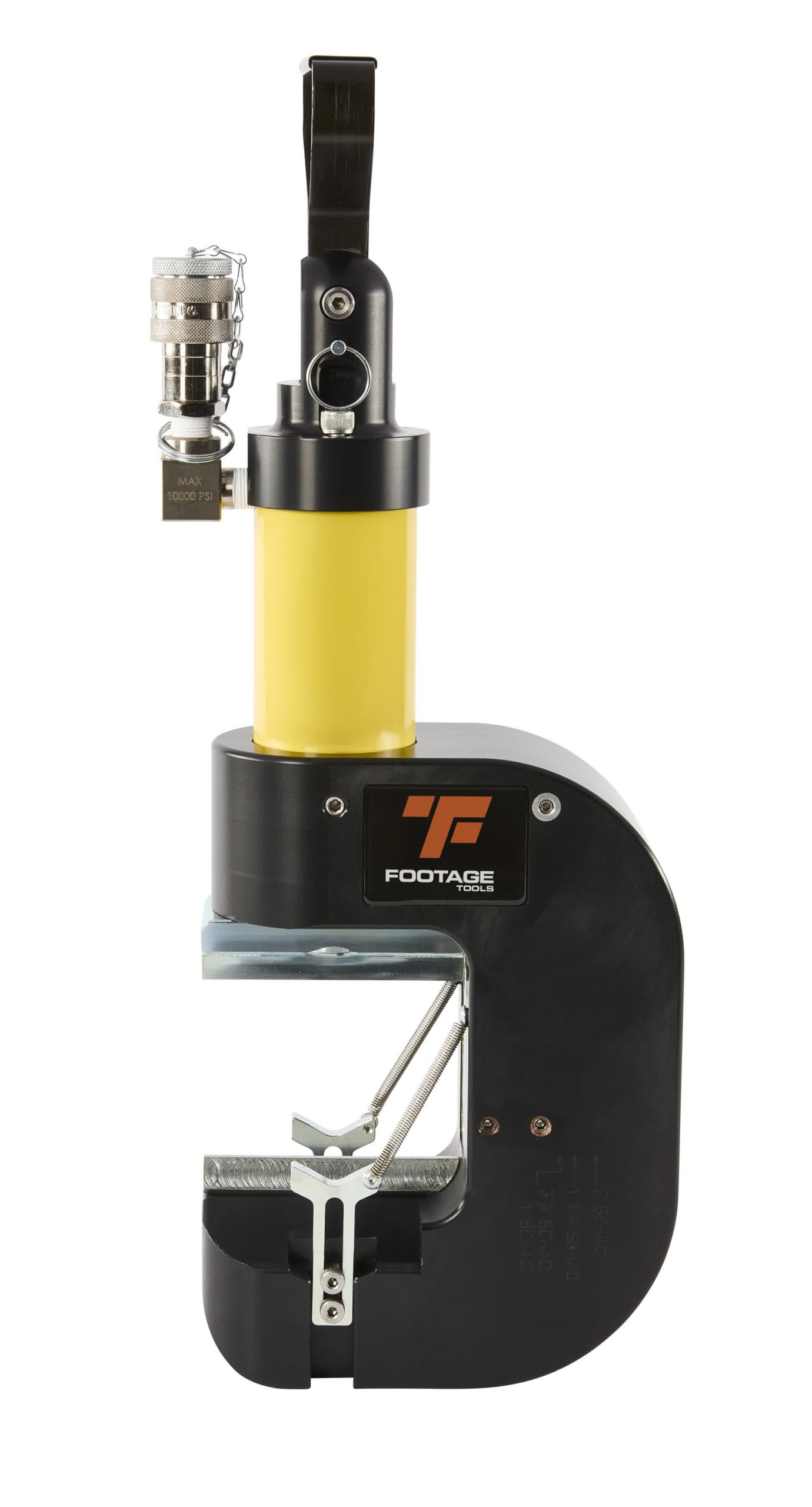

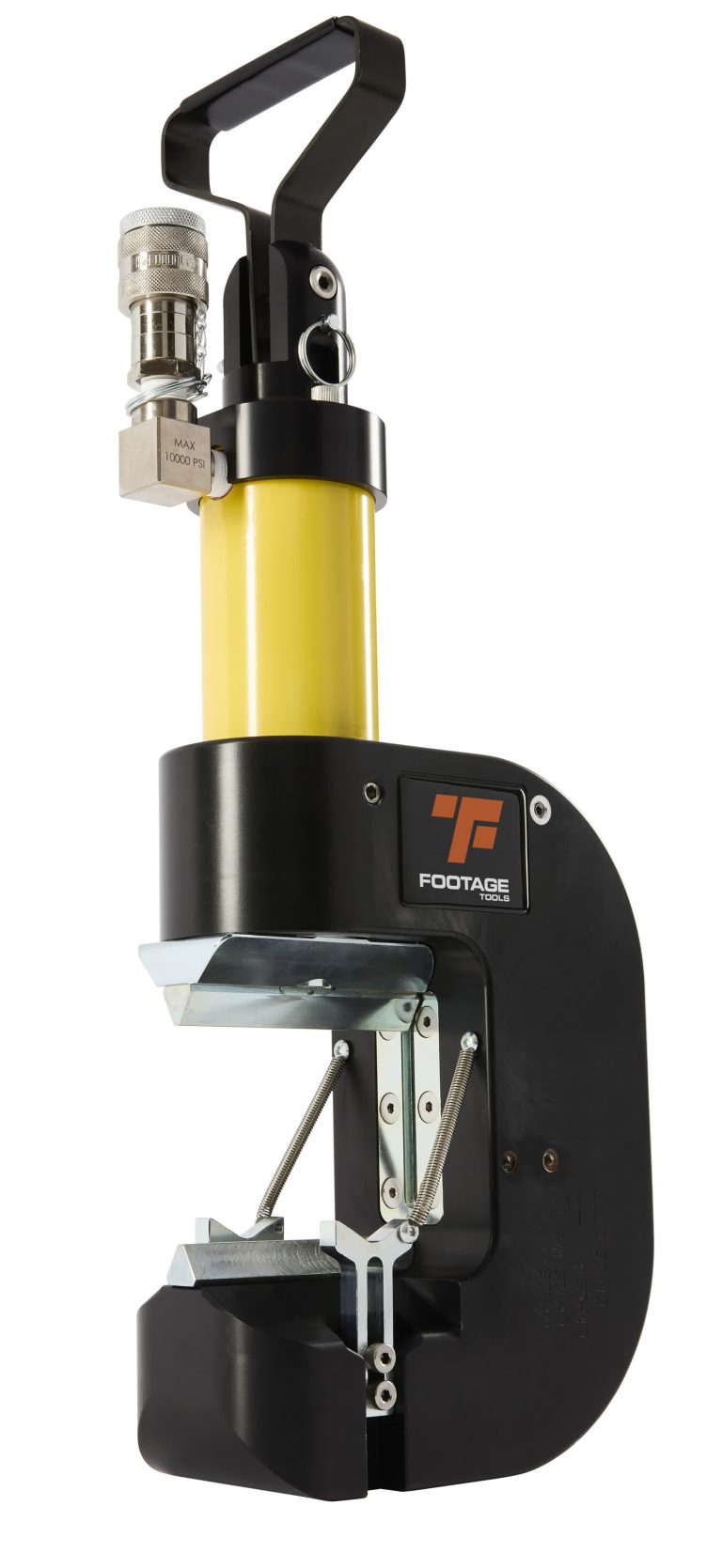

Footage C165 Emergency Steel Pipe Squeeze Tool

The Footage C165 Emergency Steel Squeeze-Off Tool is engineered for utility contractors, gas distribution crews, municipalities, and emergency response teams that require a reliable method for controlling damaged steel gas lines. Designed specifically for emergency leak mitigation, the tool enables operators to remotely squeeze off steel gas lines and anodeless risers while maintaining a safe standoff distance from the affected area.

Its compact hydraulic system delivers substantial squeezing force through a single-stage 10,000 PSI pump, helping crews respond quickly and effectively during critical incidents. The adjustable head positions and extendable handle provide flexibility when working in confined spaces or challenging field conditions.

Key Features

• Remote squeeze-off capability for emergency gas line control.
• Designed for steel gas lines, distribution lines, and anodeless risers.
• Single-stage hydraulic pump with up to 10,000 PSI operating pressure.
• Three-position squeeze head for enhanced positioning flexibility.
• Head pivots to 45° and 90° angles to accommodate different access requirements.
• Telescoping handle extends from 7 ft to 14 ft for increased operator safety.
• Lightweight and compact design for easier transport and deployment.
• Suitable for pipe diameters from 3/4 in. to 2 in.

Benefits

• Enhanced Operator Safety
  The extended telescoping handle allows personnel to remain farther from the damaged gas line, reducing exposure to hazardous leak conditions.
• Fast Emergency Response
  High-pressure hydraulic operation provides efficient line control during emergency situations, helping crews act quickly when every minute matters.
• Greater Field Flexibility
  The multi-position pivoting head improves access around obstacles and enables operation in various field environments.
• Durable Utility-Grade Construction
  Built for demanding gas utility applications where dependable performance is required under emergency conditions.
• Improved Leak Mitigation
  Designed specifically to help control gas line breaks and minimize the impact of leaks until permanent repairs can be completed.

Frequently Asked Questions

What is the C165 used for?

The C165 is designed to remotely control and squeeze off damaged steel gas lines and anodeless risers during emergency situations.

What pipe sizes can it handle?

The tool is designed for steel lines ranging from 3/4 inch to 2 inches in diameter.

How does the tool improve worker safety?

Its telescoping handle extends up to 14 feet, allowing operators to work farther away from the leak source.

Does the squeeze head adjust?

Yes. The head features three operating positions and can pivot to 45° or 90° angles for better access and positioning.

What hydraulic pressure does the tool provide?

The integrated single-stage hydraulic pump delivers up to 10,000 PSI for effective squeeze-off performance.

Who typically uses this tool?

Gas utilities, pipeline contractors, municipal crews, and emergency response personnel commonly use remote squeeze-off tools for leak control and infrastructure maintenance.
