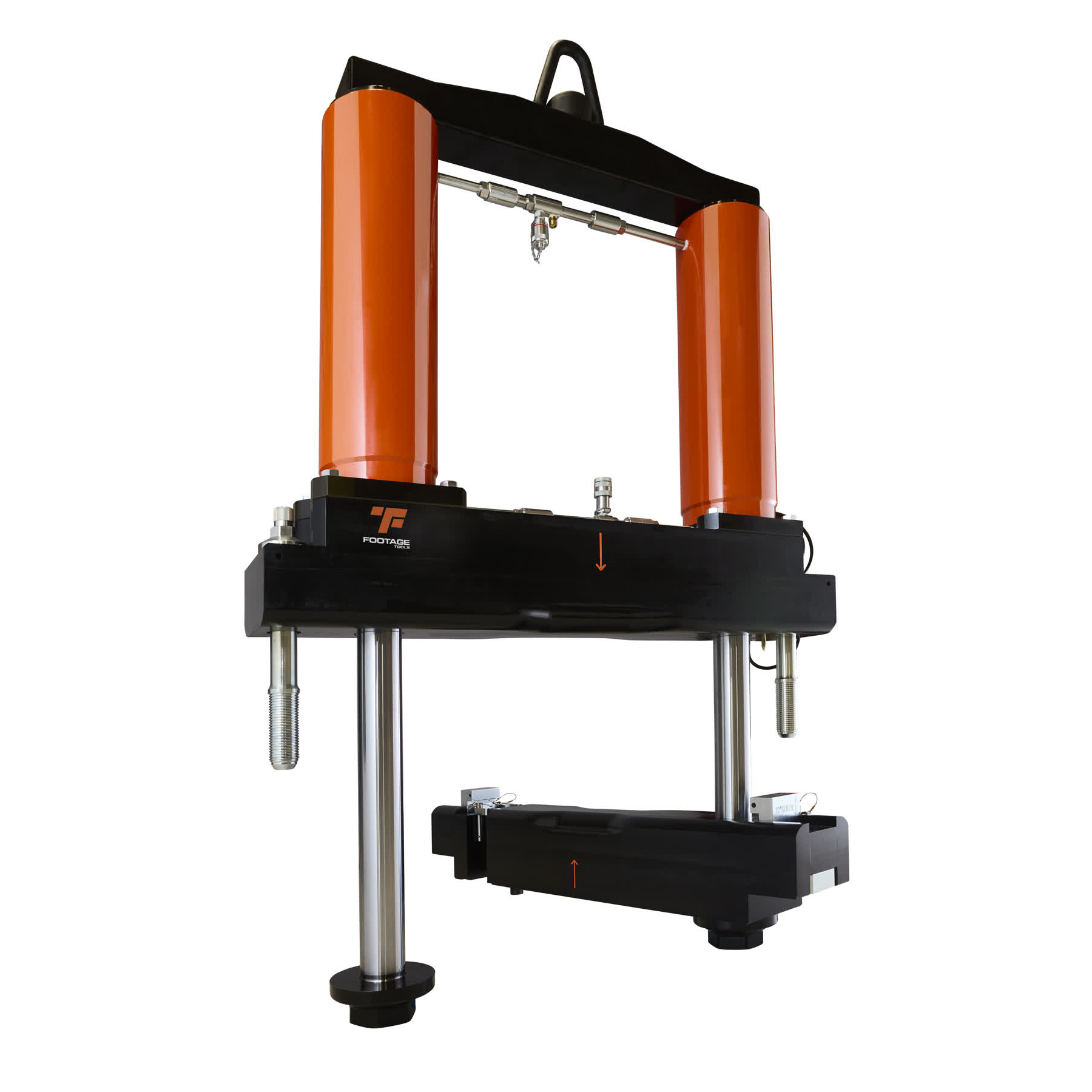

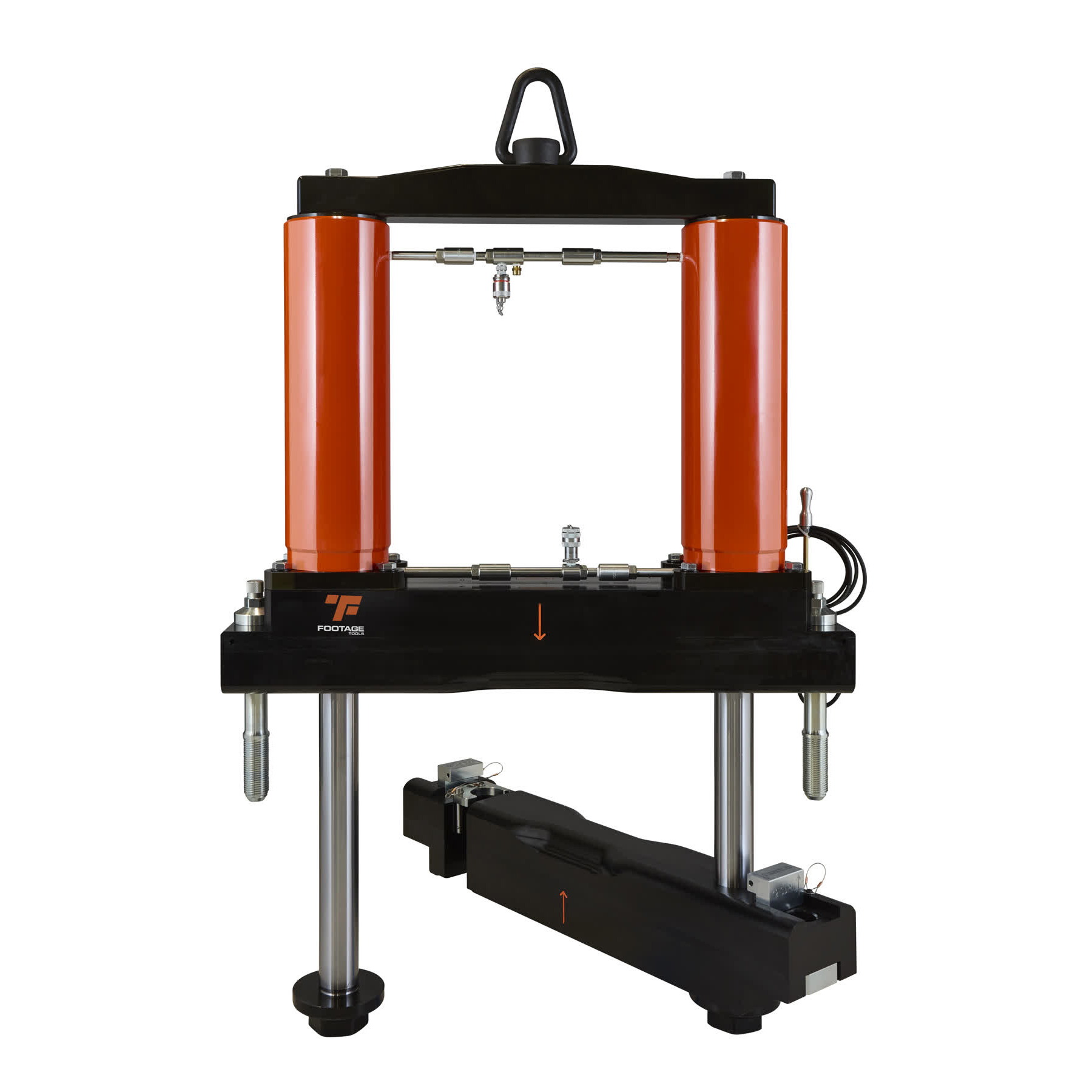

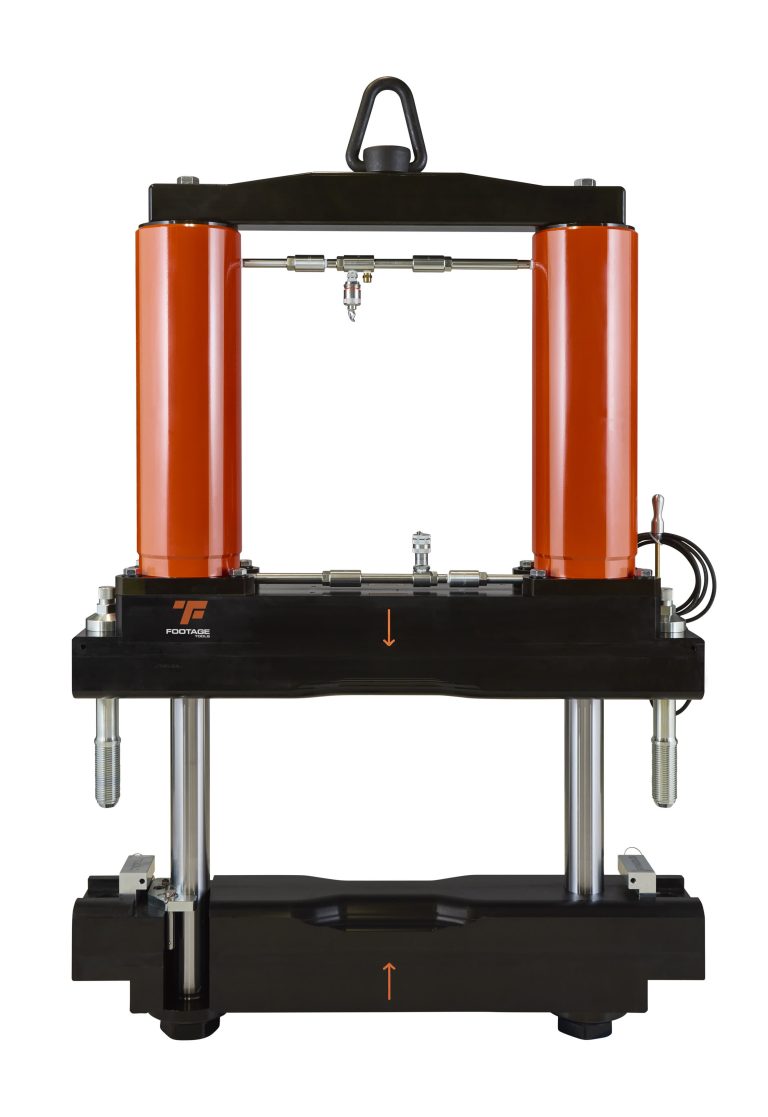

The Footage C1600 Hydraulic Squeeze-Off Tool is built for demanding polyethylene pipeline applications where temporary flow restriction or line isolation is required. Featuring a robust CNC-machined construction with no welded components, this tool combines durability, precision, and long-term performance in the field.
Its high-pressure hydraulic system generates substantial squeezing force while specialized jaw geometry helps maximize flow control with reduced operational effort. The swing-out lower bar design allows technicians to position the tool quickly, even in tight working environments, making it well suited for utility maintenance, repairs, and emergency response operations.
Key Features
- Handles 12" to 16" MDPE and HDPE pipe sizes.
- Generates up to 261 tons of squeezing force for effective flow control.
- 10,000 PSI hydraulic system with quick-connect fittings for efficient setup and operation.
- CNC-machined construction without welded components to enhance strength and reliability.
- Aircraft-grade aluminum squeeze bars provide durability while minimizing weight where possible.
- Chrome-plated steel side shafts help resist wear and corrosion.

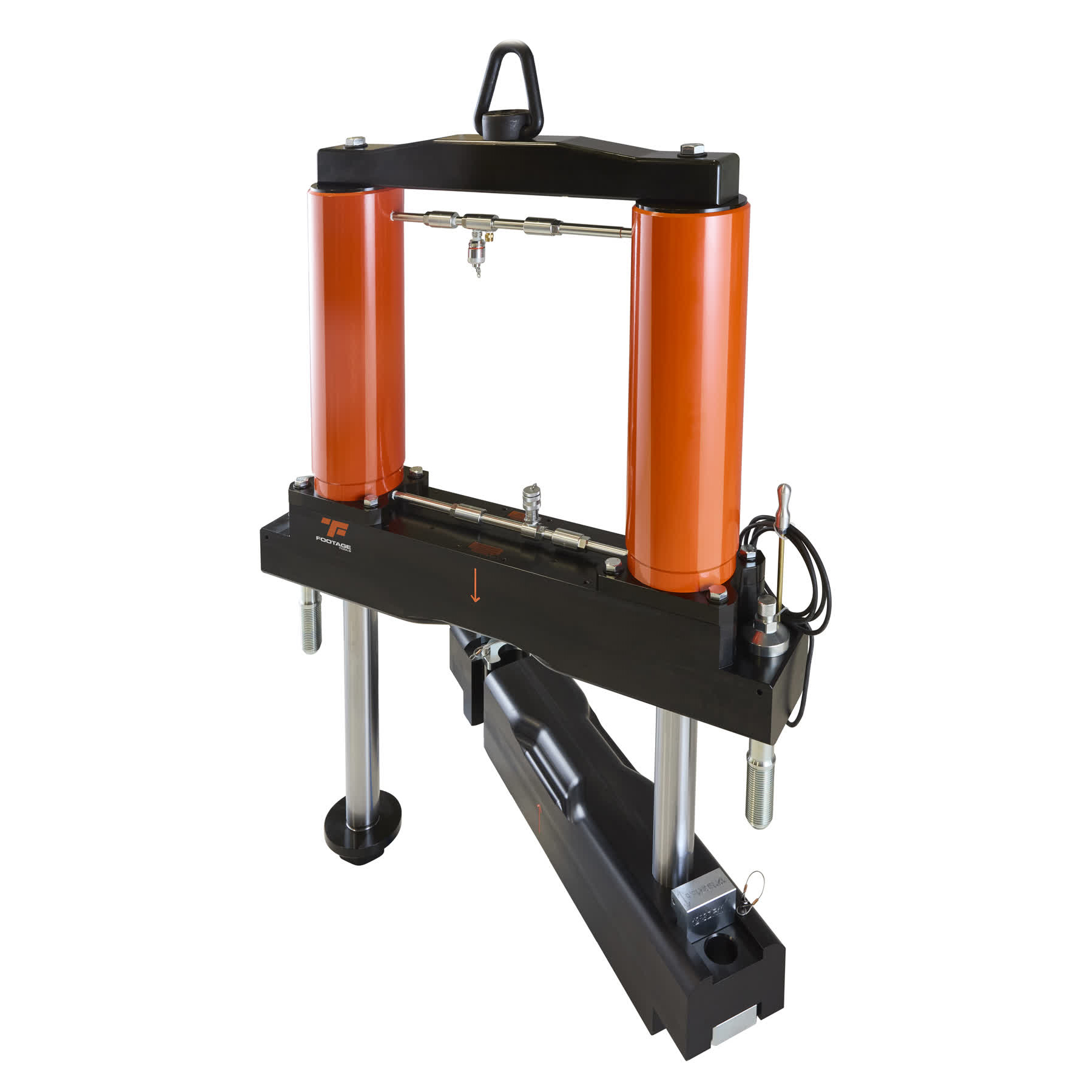

- Lock-in / swing-out bottom bar design enables faster pipe access, especially in confined spaces.
- Lock-down bolts maintain the squeeze position even if hydraulic pressure is disconnected.
- Includes a 10-foot heavy-duty grounding spike to support safe operation practices.
- Optional custom stop blocks available for specialized applications.
Benefits
- Improved Operational Efficiency
The swing-out bar configuration reduces installation time and simplifies positioning around large-diameter polyethylene pipe. - Reliable Flow Interruption
High squeezing capacity and optimized jaw design provide dependable pipe closure and flow control during maintenance activities. - Enhanced Safety
Lock-down bolts keep the pipe compressed even if hydraulic lines are disconnected, helping maintain operational control throughout the job. - Built for Long-Term Service
The tool's CNC-machined, weld-free construction helps withstand demanding field conditions and supports extended service life. - Ideal for Restricted Work Areas
The unique lower bar mechanism allows operators to work more efficiently in trenches and other confined utility environments.
Frequently Asked Questions
What pipe materials can the C1600 handle?
The tool is designed for use on MDPE and HDPE pipe systems.
What pipe sizes does the tool support?
The C1600 is intended for polyethylene pipe ranging from 12" to 16" in diameter.
How much squeezing force does the tool generate?
The hydraulic system is capable of delivering up to 261 tons of squeezing force.
What is the advantage of the swing-out bottom bar?
The design allows quicker access to the pipe and simplifies installation in confined workspaces.
Does the tool maintain compression if hydraulic pressure is removed?
Yes. Integrated lock-down bolts help maintain the squeeze even when hydraulic connections are disconnected.
Is the tool supplied with safety accessories?
Yes. The unit includes a 10-foot heavy-duty grounding spike to support safe squeeze-off procedures.
