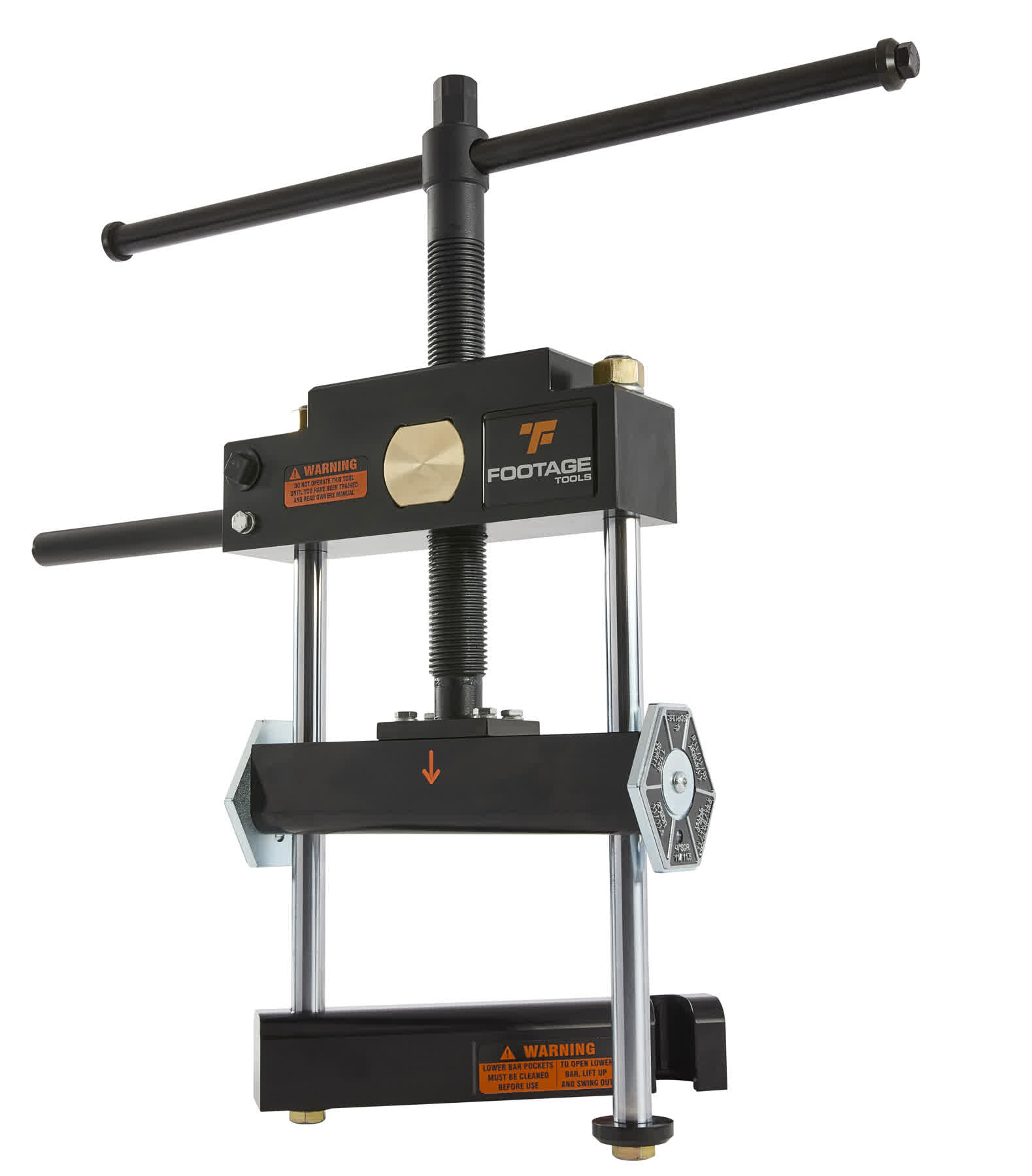

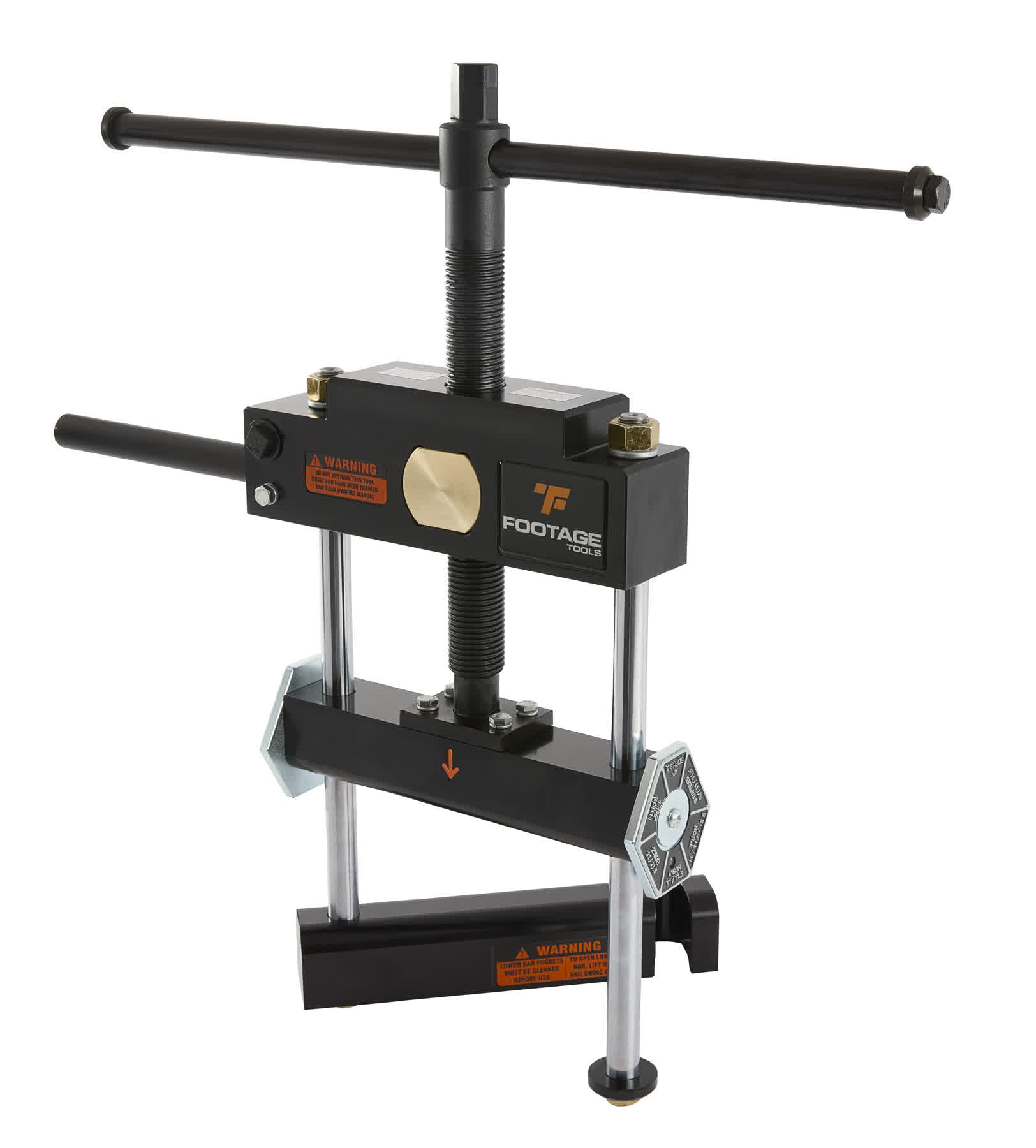

The Footage C156 Manual Squeeze-Off Tool is built to provide controlled, safe, and effective squeeze-off operations on polyethylene pipe ranging from 1" to 4" in diameter. Featuring aircraft-grade aluminum squeeze bars, chromed steel side shafts, and a coated feed screw, the tool is designed for long-term durability while minimizing corrosion and operating friction.

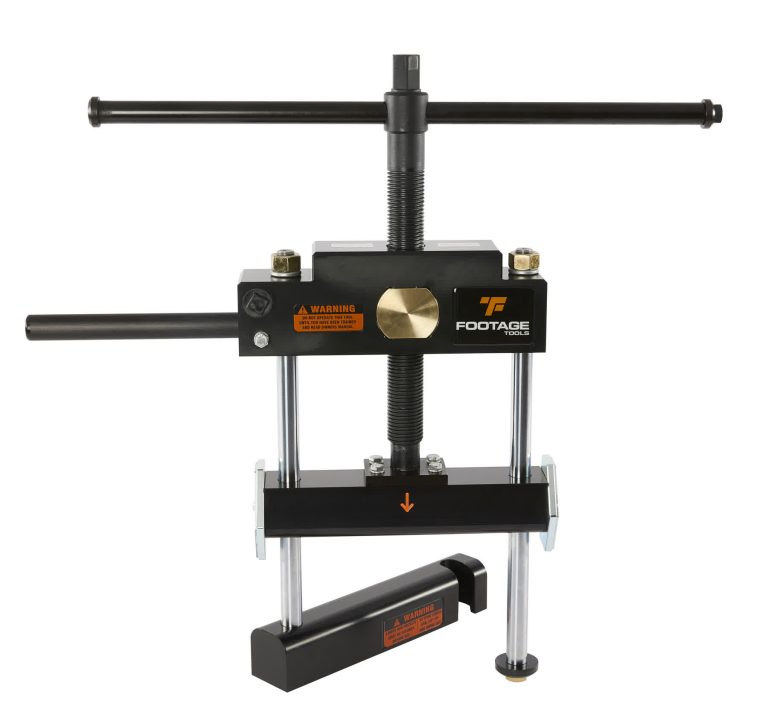

Its versatile operating system allows technicians to use either the included detachable torque bar or a standard ratchet on the integrated hex drive. A unique swing-out and lock-in bottom bar design enables faster pipe access and easier positioning, particularly in tight excavations and confined work areas. The included grounding spike and stabilizing bar help support safe, controlled operation in the field.
Key Features
- Designed for 1" to 4" PE/HDPE pipe squeeze-off applications.
- Positive-locking, 6-sided indexable gauge plates for consistent operation.
- Aircraft-grade aluminum squeeze bars provide strength while reducing weight.
- Chrome-plated steel side shafts enhance durability and corrosion resistance.
- Coated feed screw helps reduce friction and extends service life.
- Operates with either a detachable torque bar or standard ratchet.
- Swing-out/lock-in bottom bar design improves access and setup speed.
- Includes a detachable stabilizing bar for additional operational stability.
- Supplied with a 5-foot grounding spike to support safe field operations.
- Custom gauge plates available for specialized applications.
Benefits
- Improved Jobsite Efficiency
The swing-out bottom bar design allows crews to position the tool quickly around installed pipe, reducing setup time and simplifying operation in trenches and confined spaces. - Durable Construction
High-quality aluminum and steel components help withstand rugged field conditions while minimizing corrosion and maintenance requirements. - Flexible Operation
Technicians can use the included torque bar or a ratchet drive, providing flexibility based on available tools and working conditions. - Enhanced Safety
The included grounding spike and positive-locking gauge system support safer squeeze-off procedures during maintenance and repair work. - Reliable Flow Control
Designed specifically for polyethylene piping systems, the C156 delivers consistent squeeze-off performance for utility and gas distribution applications.
Frequently Asked Questions
What type of pipe is the C156 designed for?
The C156 is designed for polyethylene (PE) and HDPE pipe ranging from 1" to 4" in diameter.
How is the tool operated?
The tool can be operated using the supplied detachable torque bar or by using a ratchet on the integrated hex drive.
Does the tool include safety accessories?
Yes. The C156 includes a 5-foot grounding spike and a detachable stabilizing bar to support safe operation.
Is this tool suitable for confined work areas?
Yes. The swing-out and lock-in bottom bar design allows easier pipe access and setup in tight trench or excavation environments.
Are custom configurations available?
Custom gauge plates are available for specialized requirements.
