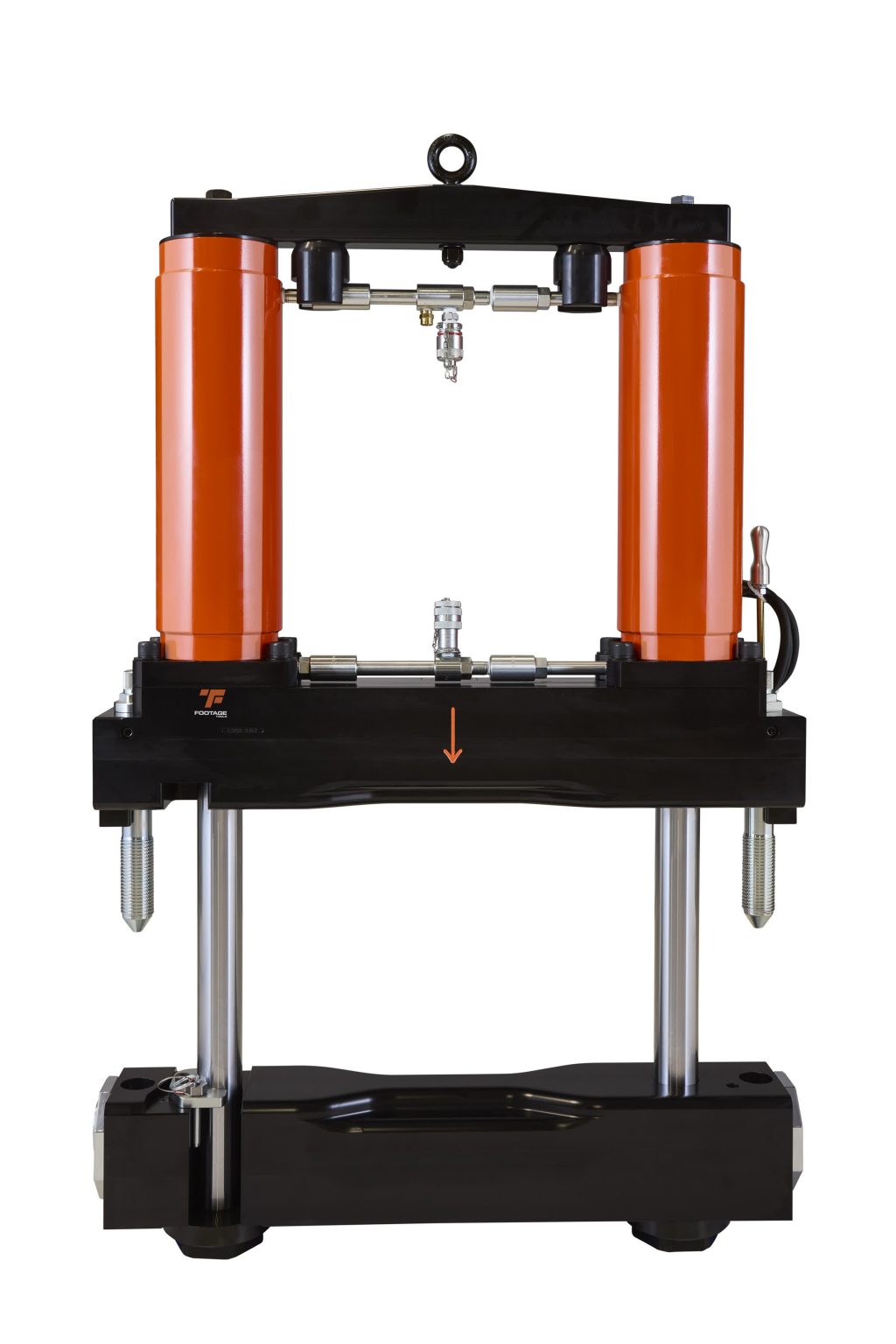

Footage C1200 Hydraulic PE Pipe Squeeze Tool

The Footage C1200 Hydraulic Squeeze-Off Tool is engineered for contractors, utility operators, and pipe installation professionals who require reliable flow control on large-diameter polyethylene pipe. Featuring a robust CNC-machined construction with no welded components, the tool delivers exceptional durability in demanding field conditions.

Designed to generate up to 150 tons of squeezing force, the C1200 utilizes an advanced hydraulic system to effectively control flow while minimizing the force required to compress the pipe. Its unique lock-in/swing-out bottom bar design allows operators to position the tool quickly, even in restricted work areas, while mechanical lockdown bolts help maintain the squeeze if hydraulic pressure is disconnected.

The tool is supplied with a heavy-duty grounding spike for enhanced operational safety and can be configured with custom gauge plates to support specific application requirements.

Key Features

• Designed for 8" to 12" MDPE and HDPE pipe applications.
• Generates up to 150 tons of squeezing force.
• 10,000 PSI hydraulic system with quick-connect fittings for efficient setup and operation.
• CNC-machined construction with no welded parts for increased durability.
• 8-sided positive-locking indexable gauge plates help provide accurate pipe compression control.
• Aircraft-grade aluminum squeeze bars for strength while reducing overall weight.
• Chrome-plated steel side shafts enhance durability and corrosion resistance.

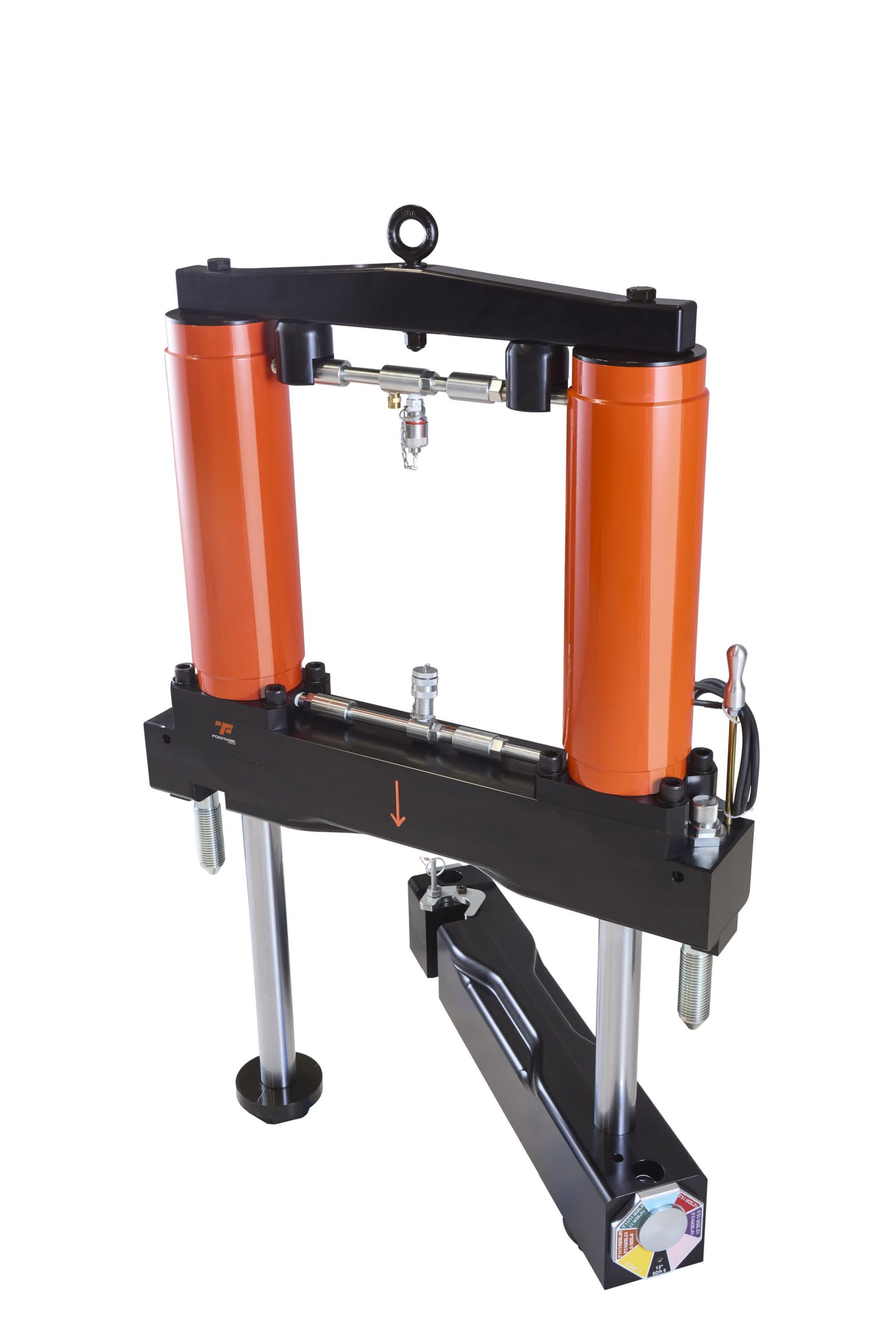

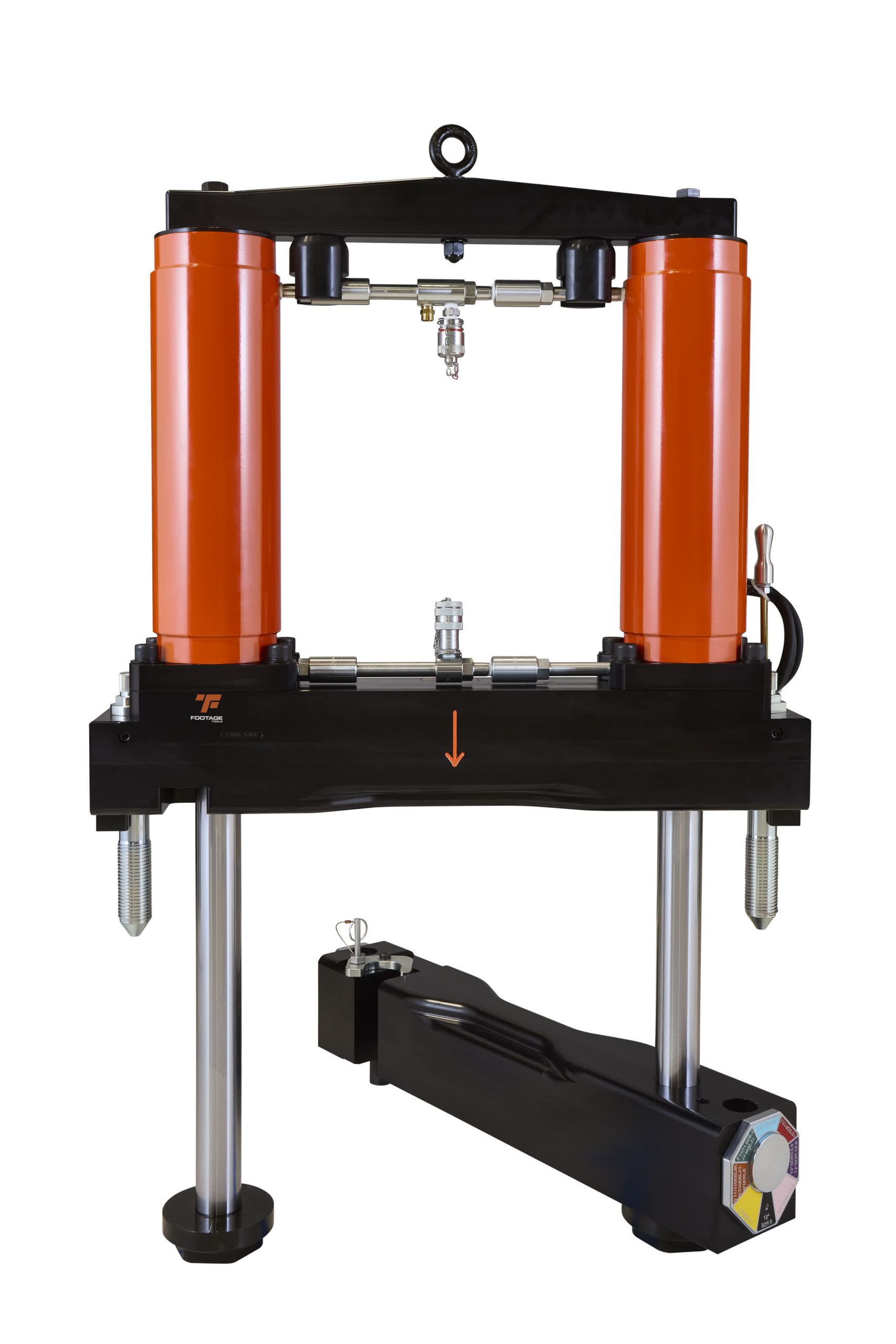

• Lock-in/swing-out bottom bar design allows easier pipe access in confined spaces.
• Mechanical lockdown bolts maintain squeeze integrity if hydraulics are disconnected.
• Dog bone jaw design helps maximize flow control efficiency while reducing squeezing effort.
• Includes a 10-foot heavy-duty grounding spike.
• Custom gauge plates available for specialized applications.

Benefits

• Improved Job Site Safety
  The included grounding system and positive locking components help support safer squeeze-off procedures during utility maintenance and emergency repairs.
• Reliable Flow Isolation
  High squeezing force combined with optimized jaw geometry enables effective flow control across a range of large-diameter polyethylene pipe systems.
• Faster Field Operations
  Quick-connect hydraulic fittings and the swing-out bottom bar design simplify installation and removal, reducing downtime during service work.
• Built for Long-Term Durability
  CNC-machined components, aircraft-grade aluminum bars, and chrome-plated steel shafts provide dependable performance in demanding environments.
• Enhanced Equipment Reliability
  Mechanical lockdown bolts allow operators to maintain pipe compression even when hydraulic pressure is removed, increasing operational confidence.

Frequently Asked Questions

What pipe sizes can the C1200 accommodate?

The C1200 is designed for polyethylene pipe ranging from 8 inches to 12 inches in diameter.

What pipe materials is the tool intended for?

The tool is designed for use on HDPE and MDPE pipe systems.

How much squeezing force does the tool provide?

The C1200 can exert up to 150 tons of squeezing force.

What hydraulic pressure does the system use?

The tool utilizes a 10,000 PSI hydraulic system with quick-connect fittings.

Can the squeeze be maintained without hydraulic pressure?

Yes. Integrated lockdown bolts help maintain the squeeze position even if the hydraulic system is disconnected.

Is the tool suitable for confined work areas?

Yes. The lock-in/swing-out bottom bar design provides easier pipe access and simplifies operation in restricted spaces.

Are custom configurations available?

Custom gauge plates are available to support specialized pipe and application requirements.
