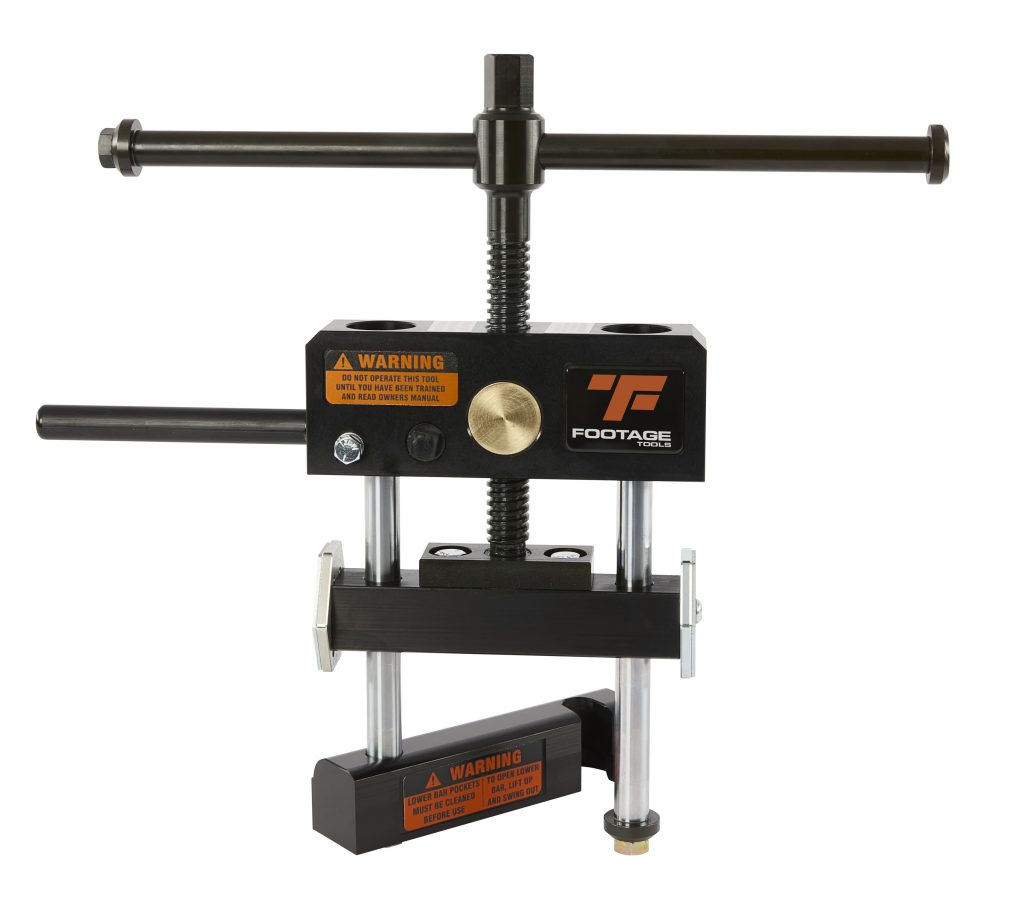

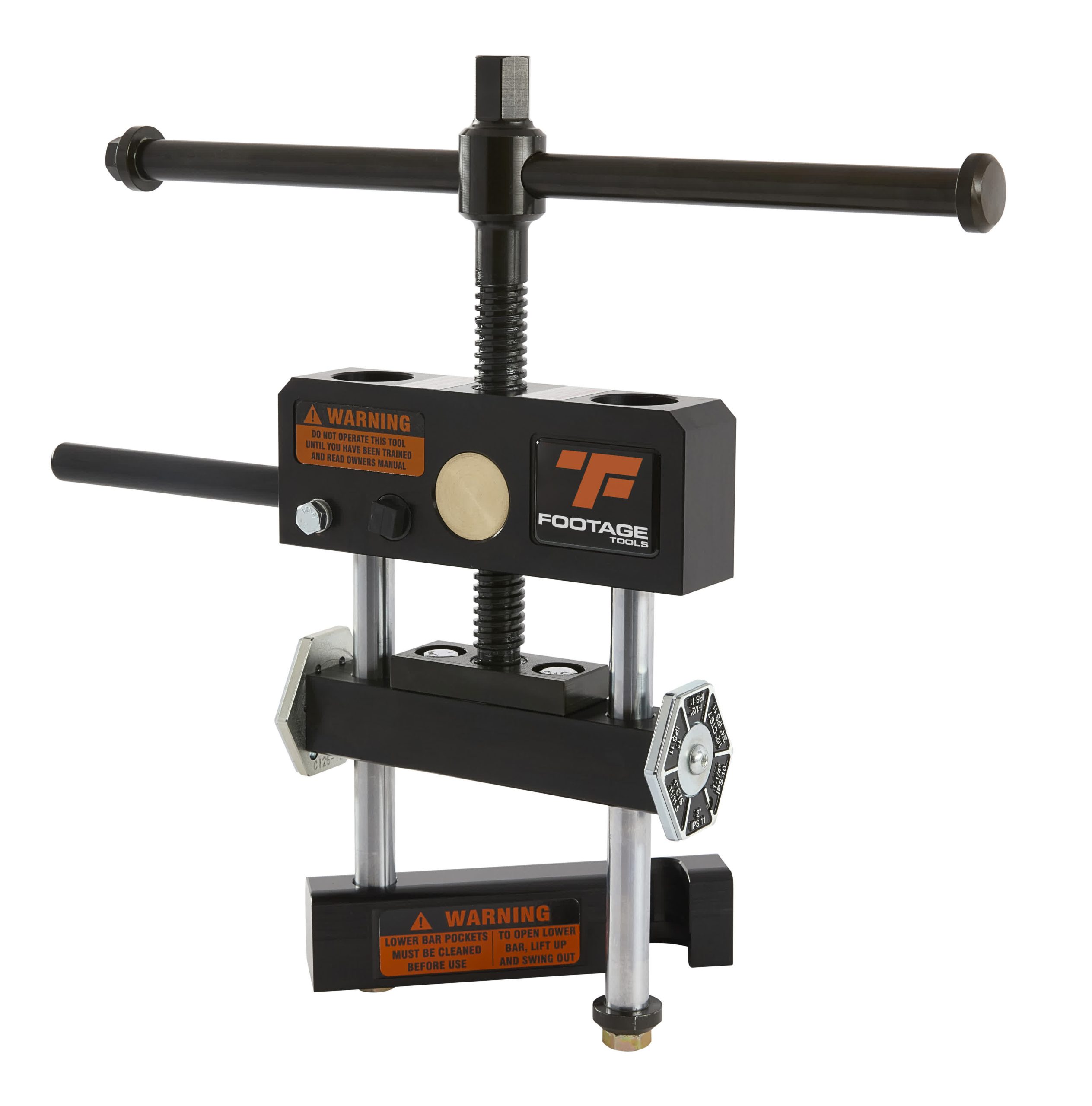

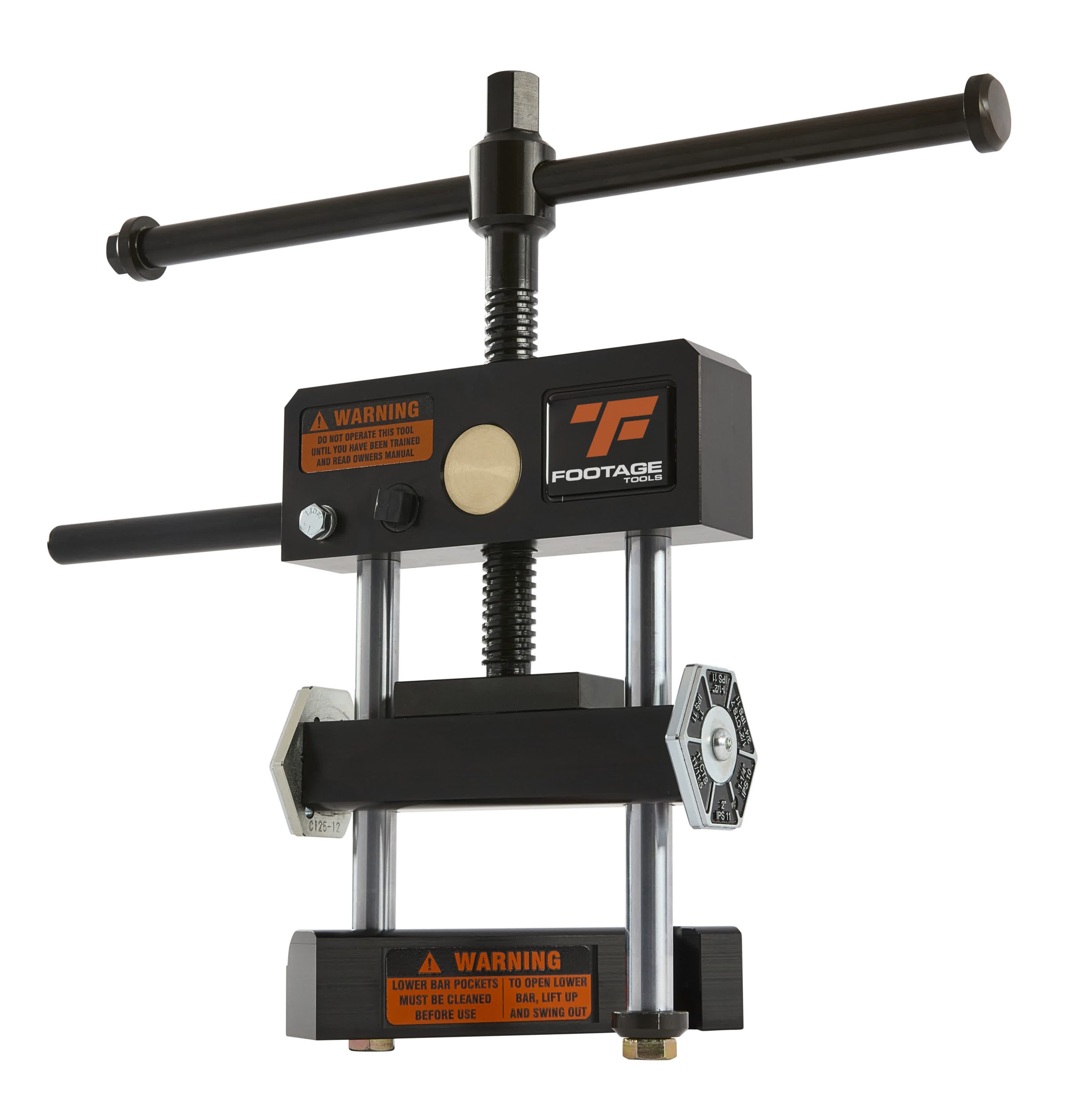

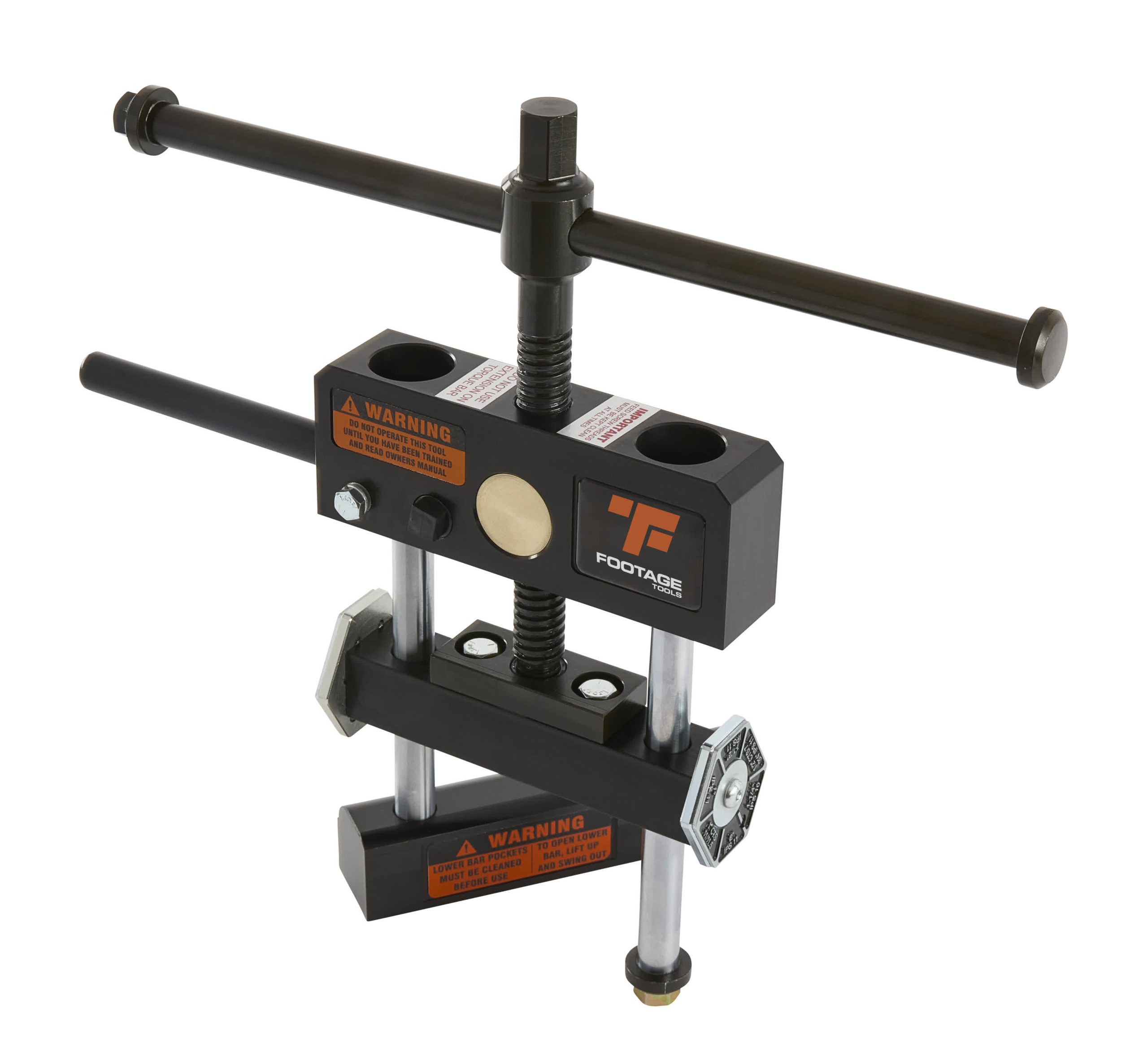

Footage C100 Manual PE Pipe Squeeze Tool

The Footage C100 Manual Squeeze-Off Tool is engineered to temporarily restrict flow in polyethylene piping during maintenance, repair, installation, and service operations. Designed for durability and ease of use, the tool features aircraft-grade aluminum squeeze bars, corrosion-resistant steel components, and positive-locking gauge plates to help ensure accurate and controlled pipe compression.

Its swing-out bottom bar design helps crews position the tool quickly, even in tight workspaces. Operators can apply force using the included detachable torque bar or a standard ratchet attached to the integrated hex drive, providing flexibility for various field conditions. A grounding spike is included to support safe operation during squeeze-off procedures.

Key Features

• Handles 1/2" to 2" polyethylene (PE) pipe.
• 6-sided positive-locking indexable gauge plates for controlled squeeze settings.
• Aircraft-grade aluminum squeeze bars for strength and reduced weight.
• Chrome-plated steel side shafts for enhanced durability.
• Coated feed screw minimizes corrosion and operating friction.
• Operates with either a detachable torque bar or a ratchet and integrated hex drive.
• Swing-out/lock-in bottom bar provides easy pipe access in confined spaces.
• Includes a detachable stabilizing bar for increased operational stability.
• Supplied with a 5-foot grounding spike for added safety.
• Custom gauge plate options available.

Benefits

• Improved Jobsite Efficiency
  The quick-access bottom bar design helps crews install and remove the tool faster, reducing downtime during maintenance and emergency repairs.
• Reliable Flow Control
  Positive-locking gauge plates help maintain consistent squeeze settings, supporting safe and repeatable pipe shutoff procedures.
• Built for Tough Environments
  Corrosion-resistant materials help extend service life in challenging outdoor and utility work conditions.
• Flexible Operation
  Compatible with either a supplied torque bar or common ratchet tools, allowing technicians to use the method best suited to the job.
• Enhanced Stability
  The detachable stabilizing bar helps maintain alignment and control during squeeze-off operations.

Frequently Asked Questions

What type of pipe is the C100 designed for?

The C100 is designed for use on polyethylene (PE) pipe ranging from 1/2" to 2" in diameter.

How is the tool operated?

Users can operate the tool with the included detachable torque bar or by using a ratchet on the integrated hex drive located on the feed screw.

Is the tool suitable for confined work areas?

Yes. The swing-out and lock-in bottom bar design allows easier access to pipe in tight spaces.

Does the tool include safety accessories?

Yes. The C100 includes a standard 5-foot grounding spike to support safe field operation.

Can custom configurations be ordered?

Custom gauge plates are available for applications requiring specific squeeze requirements.

What industries commonly use this tool?

The C100 is commonly used by gas utilities, pipeline contractors, municipalities, and utility maintenance crews that work with PE piping systems.
