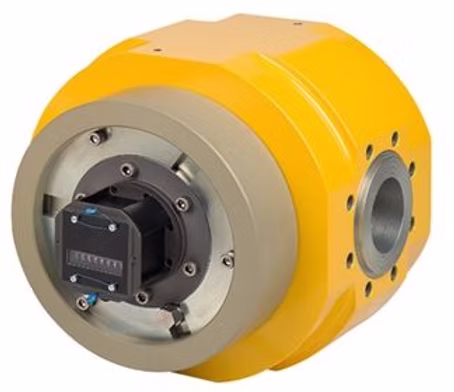

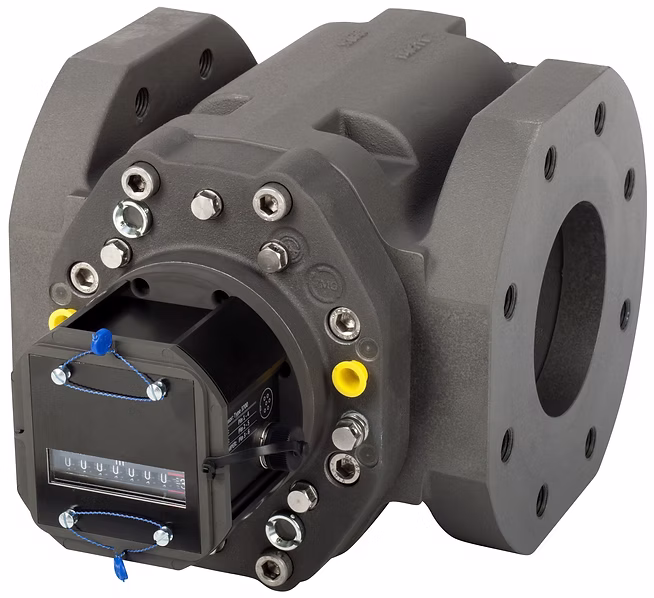

FMG FMR 300 & 600 Series Rotary Gas Flow Meters

The FMG FMR 300 & 600 Series rotary gas flow meters are built to meet demanding gas measurement requirements across utility, industrial, and compressed natural gas applications. Both meter series feature a modular cartridge design that enables efficient field servicing and cleaning, helping reduce downtime and maintenance costs.

The FMR 300 utilizes a lightweight aluminum body designed for high-pressure performance, while the FMR 600 incorporates a durable steel housing for even more demanding pressure environments. Advanced impeller and bearing designs improve resistance to pressure fluctuations, overload conditions, and long-term wear. [flowmetergroup.us]

Compliance with major industry standards and approvals makes these meters suitable for regulated custody transfer measurement and critical gas flow applications.

Key Features

• Modular, exchangeable cartridge design for simplified maintenance and servicing.
• High-accuracy rotary measurement technology for gas flow monitoring.
• MID approved and compliant with EN12480, OIML R137, and ANSI B109.3 standards.
• FMR 300 aluminum housing designed for operating pressures up to 500 psi.
• FMR 600 steel housing designed for operating pressures up to 1450 psi.
• Durable square impeller design enhances resistance to overload and pressure shocks.
• Fixed gear ratio indexing system reduces parts complexity and service requirements.
• Proprietary lubrication system helps minimize wear and extends maintenance intervals.
• Optional bearing oilers available for contaminated gas applications.

Benefits

• Reduced Maintenance Costs
  The removable cartridge design allows technicians to perform maintenance and cleaning quickly, reducing labor expenses and minimizing operational interruptions.
• Long-Term Reliability
  Robust bearings, precision impellers, and engineered housing designs help maintain performance under challenging operating conditions.
• Lower Total Cost of Ownership
  A simplified internal design and reduced spare parts inventory help lower lifecycle maintenance costs.
• High-Pressure Capability
  Choose between aluminum and steel body configurations to meet a wide range of pressure requirements.
• Regulatory Compliance
  Industry-recognized approvals support deployment in custody transfer and regulated gas measurement applications.
• Improved System Uptime
  Durable construction and extended lubrication intervals help maximize meter availability in critical gas distribution systems.

Frequently Asked Questions

What is the difference between the FMR 300 and FMR 600?

The FMR 300 features an aluminum housing designed for operating pressures up to 500 psi, while the FMR 600 uses a steel housing capable of handling pressures up to 1450 psi.

Are these meters suitable for custody transfer applications?

Yes. The meters are designed for custody transfer gas measurement and comply with multiple industry standards and approvals.

What gases can be measured?

The meters are intended for non-corrosive gases such as natural gas, propane, butane, air, and hydrogen.

How do these meters reduce maintenance costs?

The exchangeable cartridge design, simplified gearing system, and advanced lubrication design help reduce maintenance complexity and spare parts requirements.

Can the meter operate in contaminated gas streams?

For applications with elevated contamination levels, the FMR 600 can be equipped with optional bearing oilers to help flush contaminants from critical components.

Are the meters tested for accuracy?

Yes. Each meter is tested against traceable calibrated references to verify measurement performance.
